Batch reporting

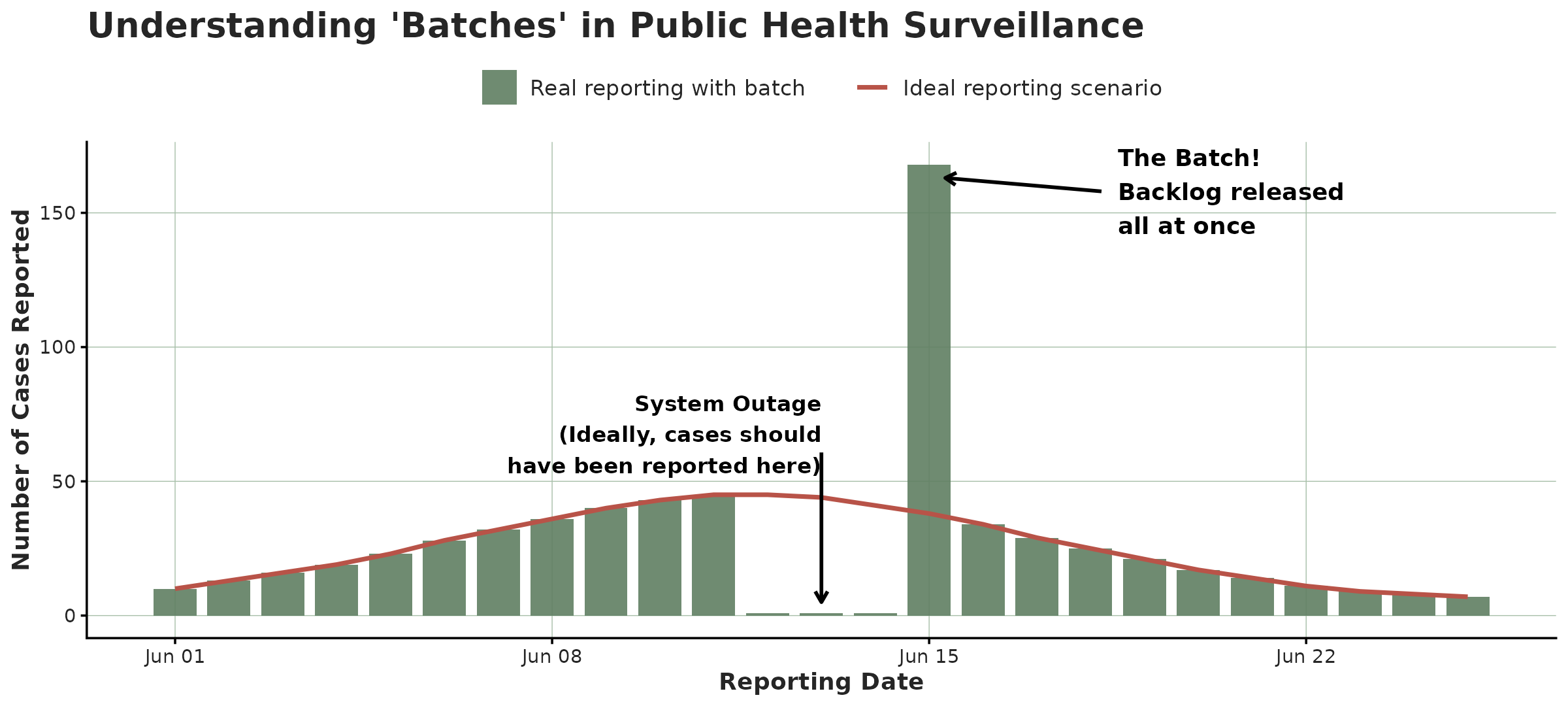

Surveillance data does not always arrive smoothly. Sometimes the reporting system halts or reduces its output (e.g. a data-system outage, an overwhelmed jurisdiction) and the backlog is released later all at once. That release is called a batch: a collection of reports from previous periods that were held and reported all at once during a different reporting period. Intuivitively one can think of a batch as a collection of reports that –in an ideal scenario– should have been reported on a previous date but were actually released later.

A batch is easy to confuse with an epidemic surge. The important part is that the batch happens on the reporting date axis while a surge happens on the event date axis. A batch just moves reports to a later date not adding new cases while a real epidemic surge adds new cases. The tools here are designed to help you visualize that difference.

This article shows each plot twice: first on a clean, made-up outbreak with one obvious batch (so you learn the signature), then on real, COVID-19 data from the CDC (see covid_us).

Two datasets to compare

The made-up outbreak.

This simulation consists of a bell-shaped curve over a hundred days, each case reported within a few days. For one week near the peak, the reporting system slows down with half of each day’s reports being held back and released days after. That release is the batch.

set.seed(82495)
#Simulate a curve
onset_days <- as.Date("2024-01-01") + 0:99
bell       <- dnorm(seq(-2.5, 2.5, length.out = 100))
per_day    <- round(400 * bell / max(bell)) + 8
onset      <- rep(onset_days, per_day)
reported   <- onset + rpois(length(onset), 1.5)

clean_tn <- tbl_now(tibble(onset = onset, reported = reported),
                    event_date = onset, report_date = reported,
                    data_type = "linelist", verbose = FALSE)

# Simulate a batch
ideal <- simulate_batch(clean_tn,
  closed_dates  = seq(as.Date("2024-02-19"), by = "day", length.out = 7),
  held_fraction = 0.5)

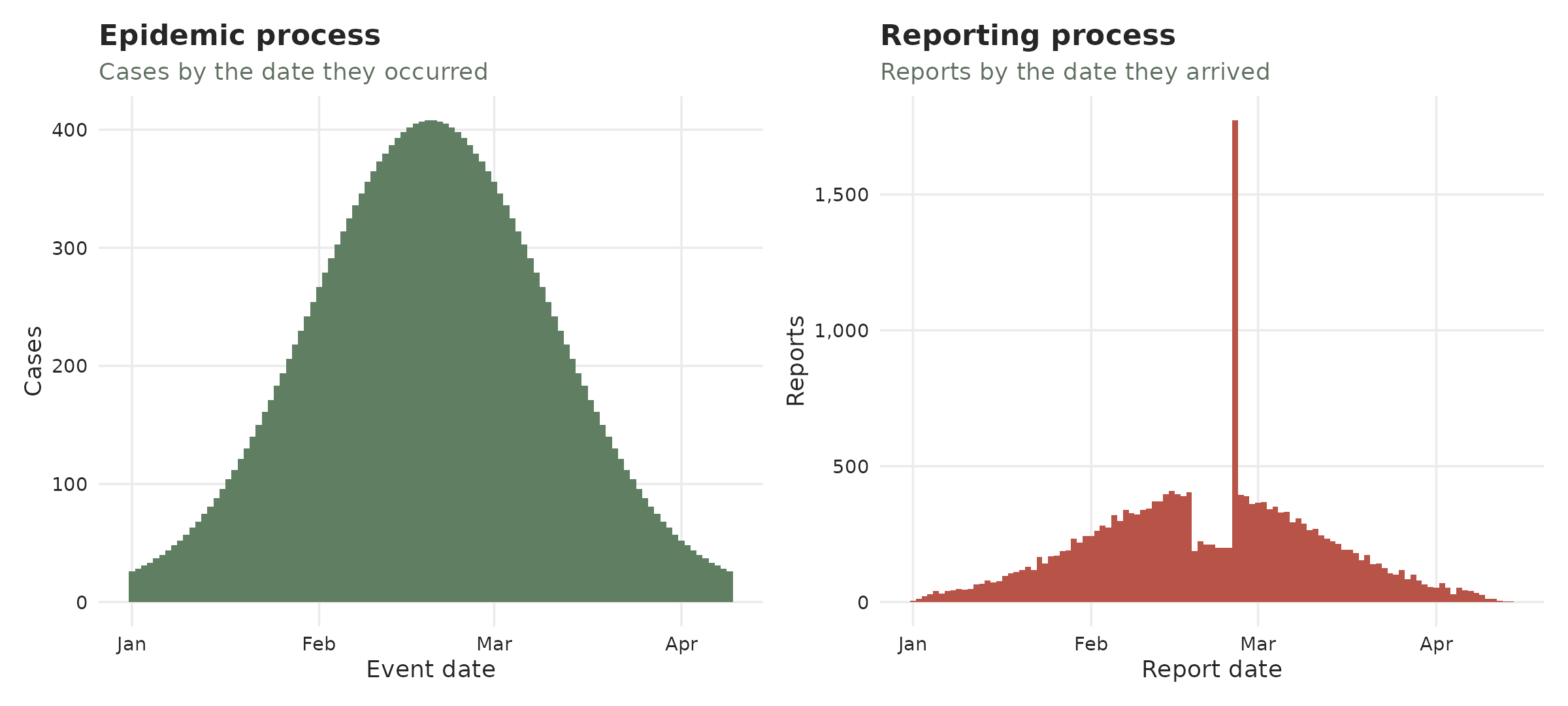

We can see the simulated data both from the event-date and the report-date perspectives:

The real data

covid_us comes from the CDC’s individual-level COVID-19 Case Surveillance Public Use Data. It carries three dates. Here we use the first and the last: symptom onset (onset_dt) as the event, and registration at CDC (cdc_report_dt) as the report. The middle one, pos_spec_dt, is the specimen collection, and it is pooled away along with current_status and sex – the batch question is about when reports arrived, not about who they were.

data(covid_us)

covid_early <- covid_us |>
  summarise(n = sum(n), .by = c(onset_dt, cdc_report_dt))

tn <- tbl_now(covid_early, event_date = onset_dt,
              report_date = cdc_report_dt, case_count = n,
              data_type = "count-incidence", verbose = FALSE)

Half of all cases were reported within a few days, but the tail is long: some cases take weeks or months to surface.

stats::quantile(rep(tn$.delay, tn$n), c(0.5, 0.75, 0.9, 0.99))
#> 50% 75% 90% 99%
#>   6  12  30 149

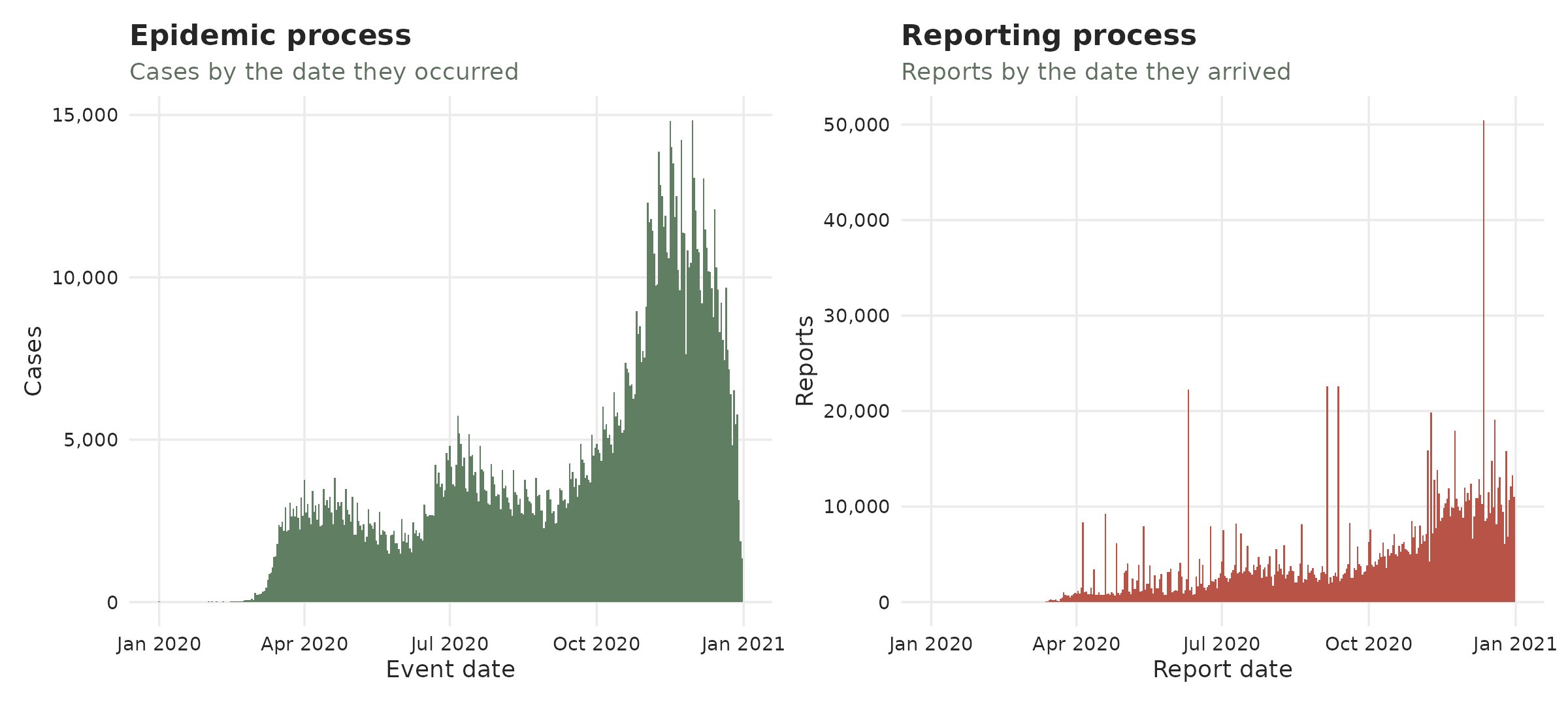

We can see this dataset again from both the event-date and the report-date perspectives:

The reporting process

This plot, which we have previously shown, shows how many reports arrived by date. Batches or surges might correspond to spikes towering over their neighbours.

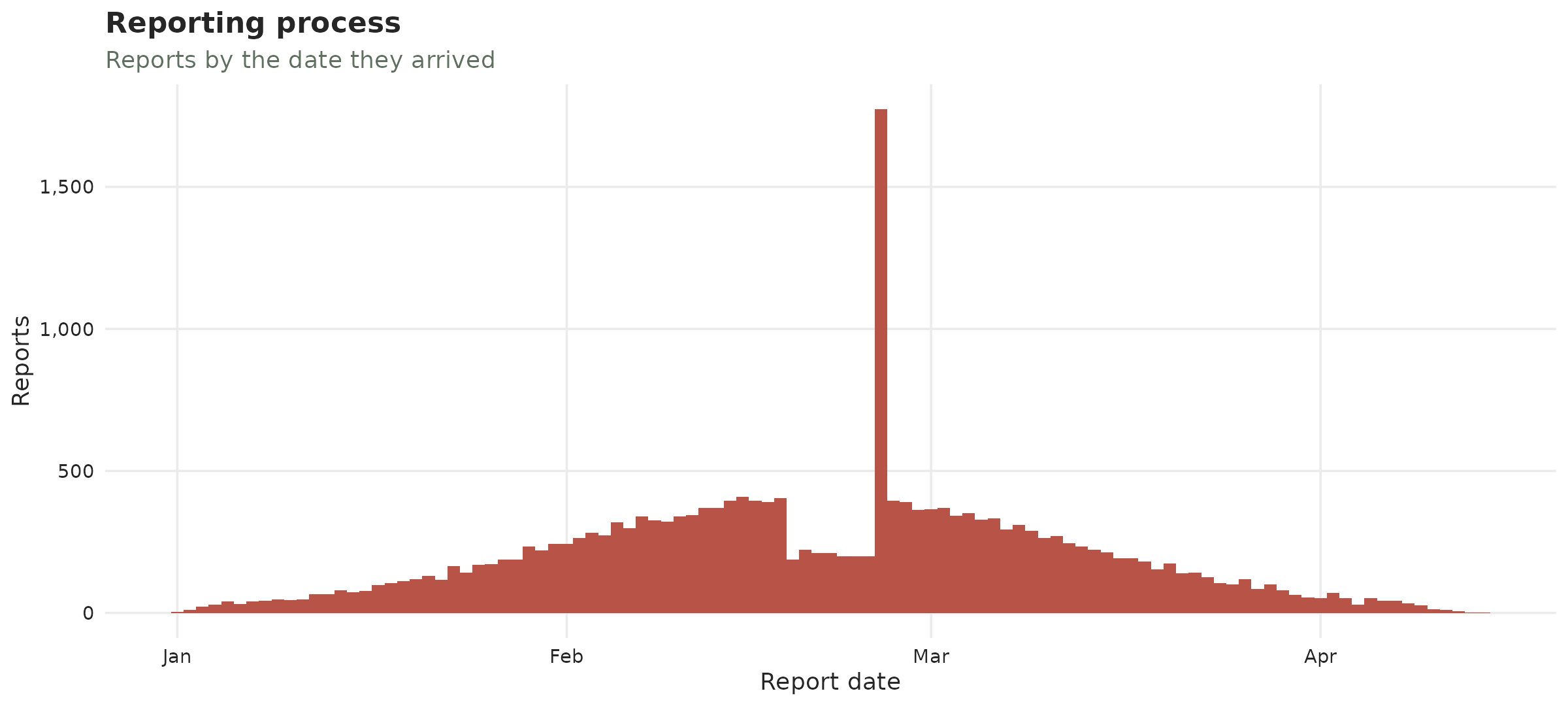

Reporting process of the simulated data

Reporting process of the simulated data

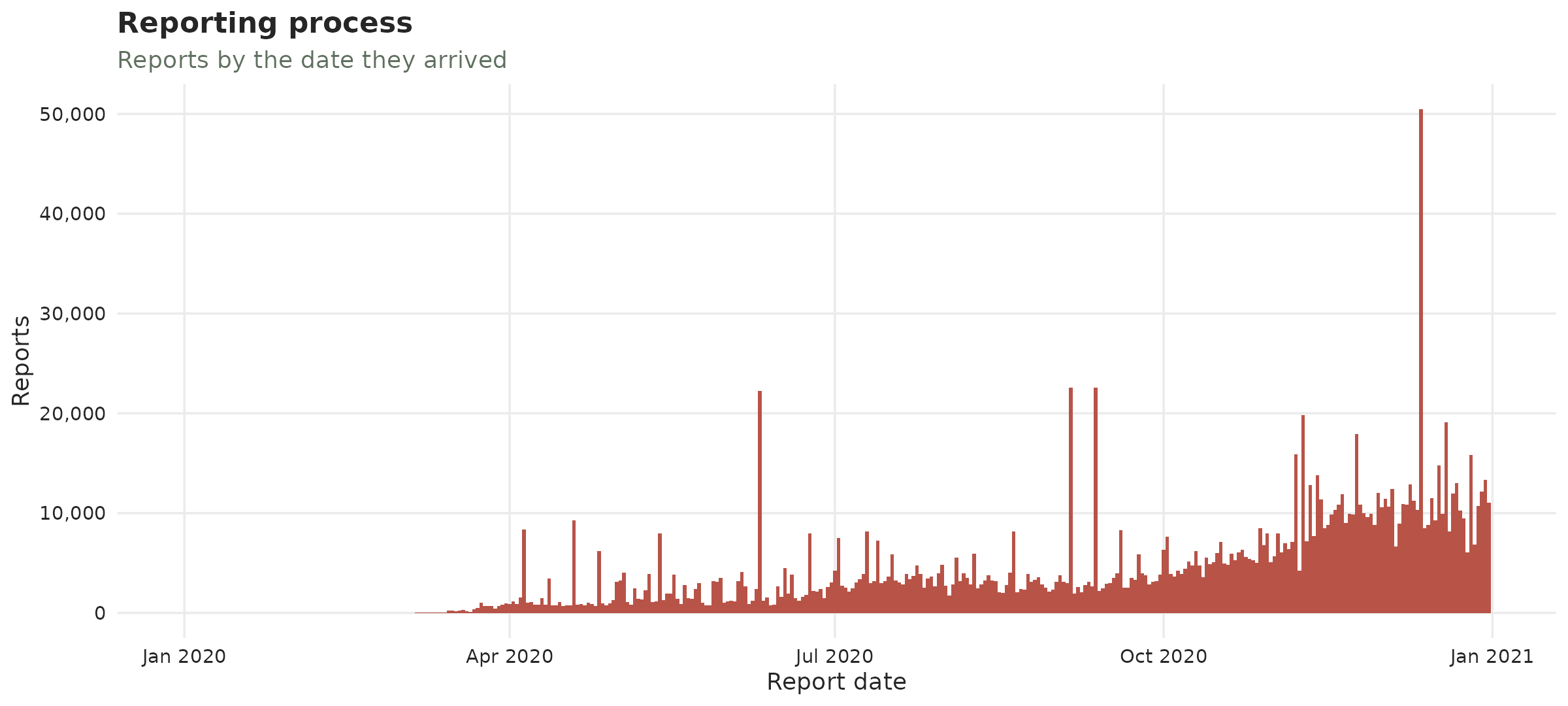

On the real data the reporting is spikier; a handful of peaks stick up where smooth epidemic reporting should be. Those are reporting artefacts either pure backlog releases, or a mix of backlog + a genuine surge (we’ll come back to this characterization later). The tallest is a single day of about 50K reports on 12 December 2020, sixteen times the 3K that arrive on a typical day; 10 June and 5 September are the other conspicuous ones.

Reporting process of the COVID-19 data

Reporting process of the COVID-19 data

The reporting triangle

We provide two different visualizations of the reporting triangle. In both we plot the three temporal dimensions involved in the process: the event date, the reporting date and the delay. We cover the plots in tiles coloured by how many cases were registered then.

The classical reporting triangle

The classical view is given by plot_reporting_triangle() where each tile is described by when it happened (across) and how long they took to be reported (vertical). The diagonal shows reports that arrive on the same day.
An indicator of a batch is a bright diagonal reaching high up which reporesents many delayed cases being all reported on the same day.

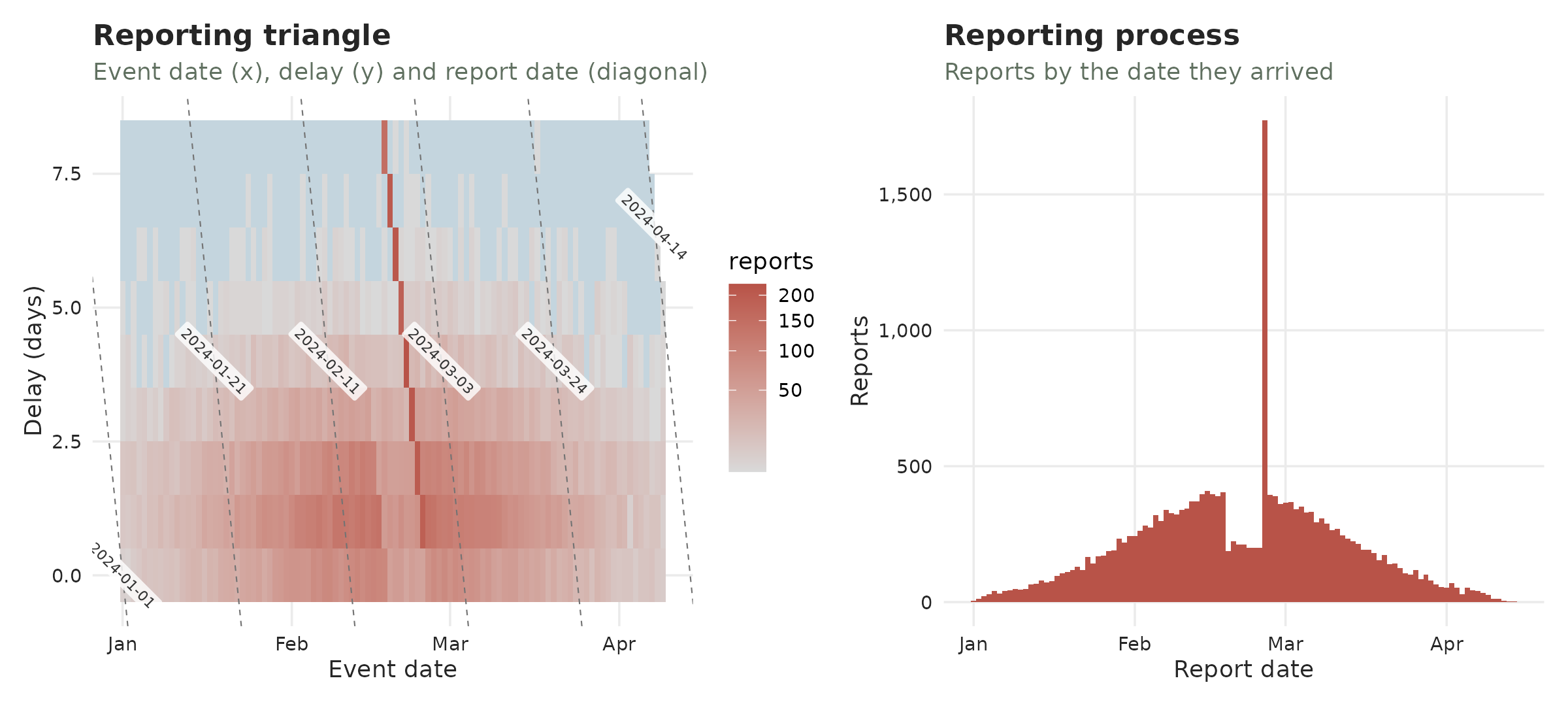

Classical reporting triangle of the simulated data

Classical reporting triangle of the simulated data

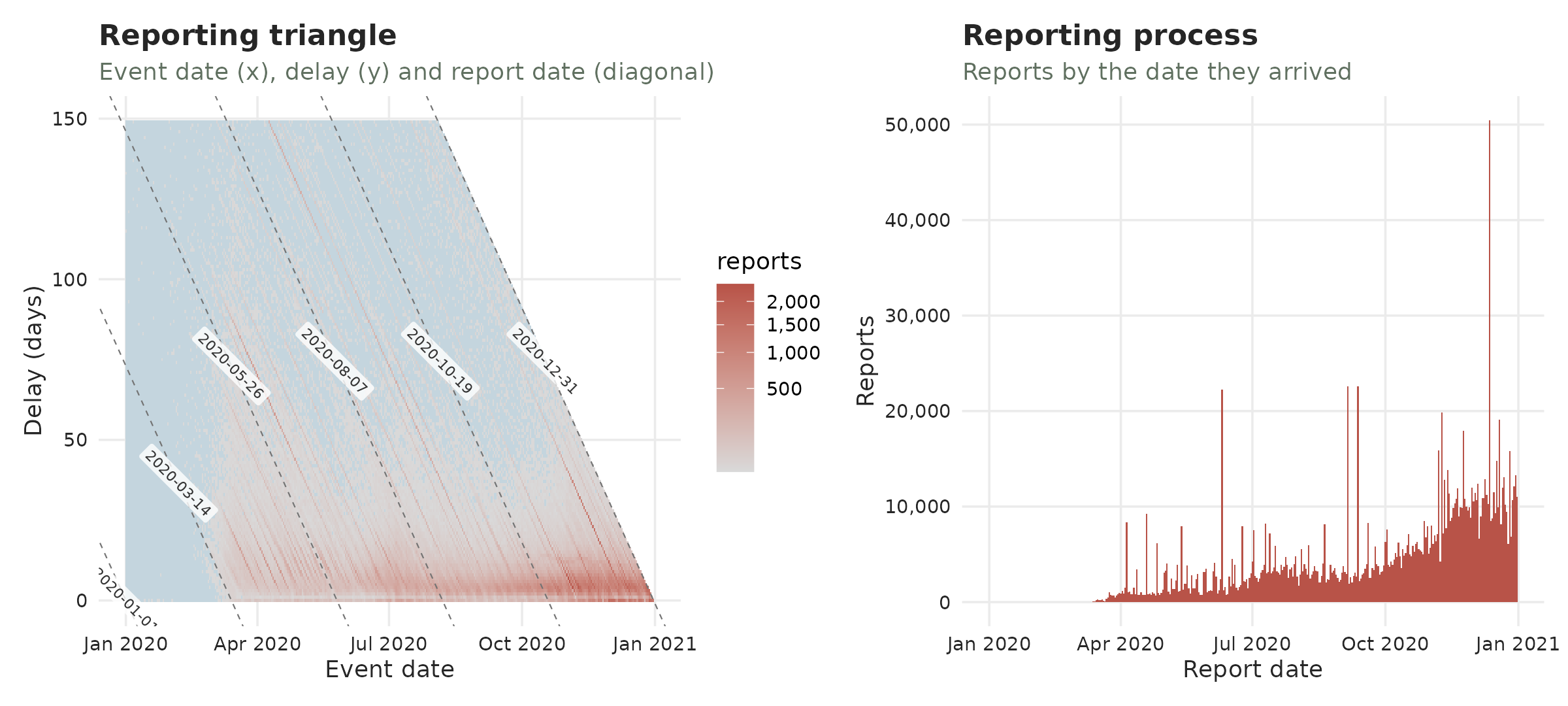

On COVID-19, the triangle is a broad blue-grey haze (most cases reported over many months) crossed by bright diagonals. They correspond to the same spikes seen in the reporting process:

Classical reporting triangle of the COVID-19 data

Classical reporting triangle of the COVID-19 data

The reporting hexamap

Event date, report date and reporting delay can be seen as an age-period-cohort triple (report = event + delay, exactly period = cohort + age), so the reporting triangle can be drawn as a hexamap in the style of Jalal and Burke (2020): each (event, delay) cell is a point on a hexagonal lattice, coloured by its report count, with event date, report date and delay running along the three 60-degree axes. Because a batch is a happens in the report date, it shows up as a vertical stripe; the fast reporting bulk sits along the short-delay bottom edge.

The marks are sized in millimetres while the lattice is sized in data units, so no default can suit every combination of cell count and figure size. size is the knob: raise it until the points nearly touch at the size you are actually drawing, and shape = 15 swaps the circles for squares, which tile more closely.

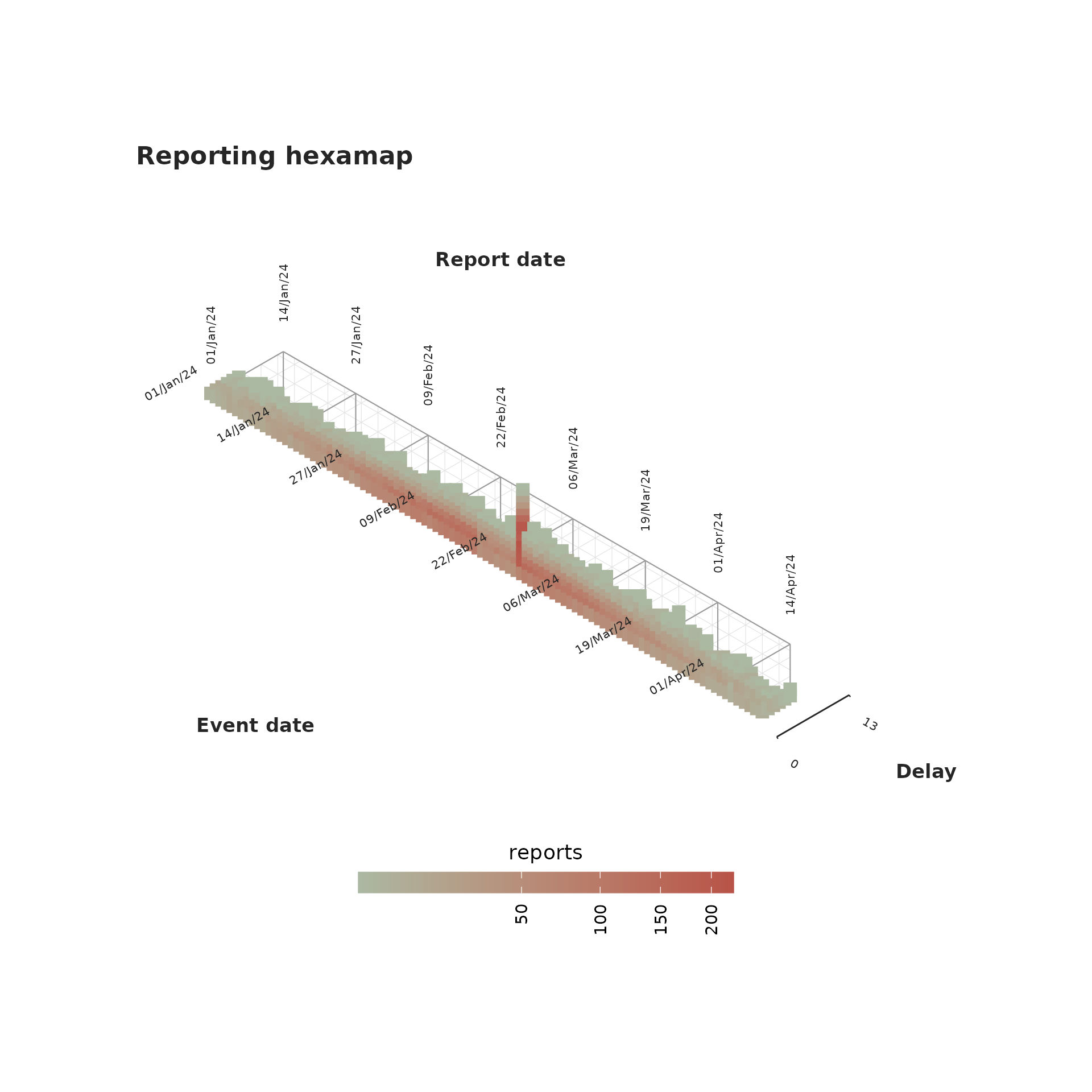

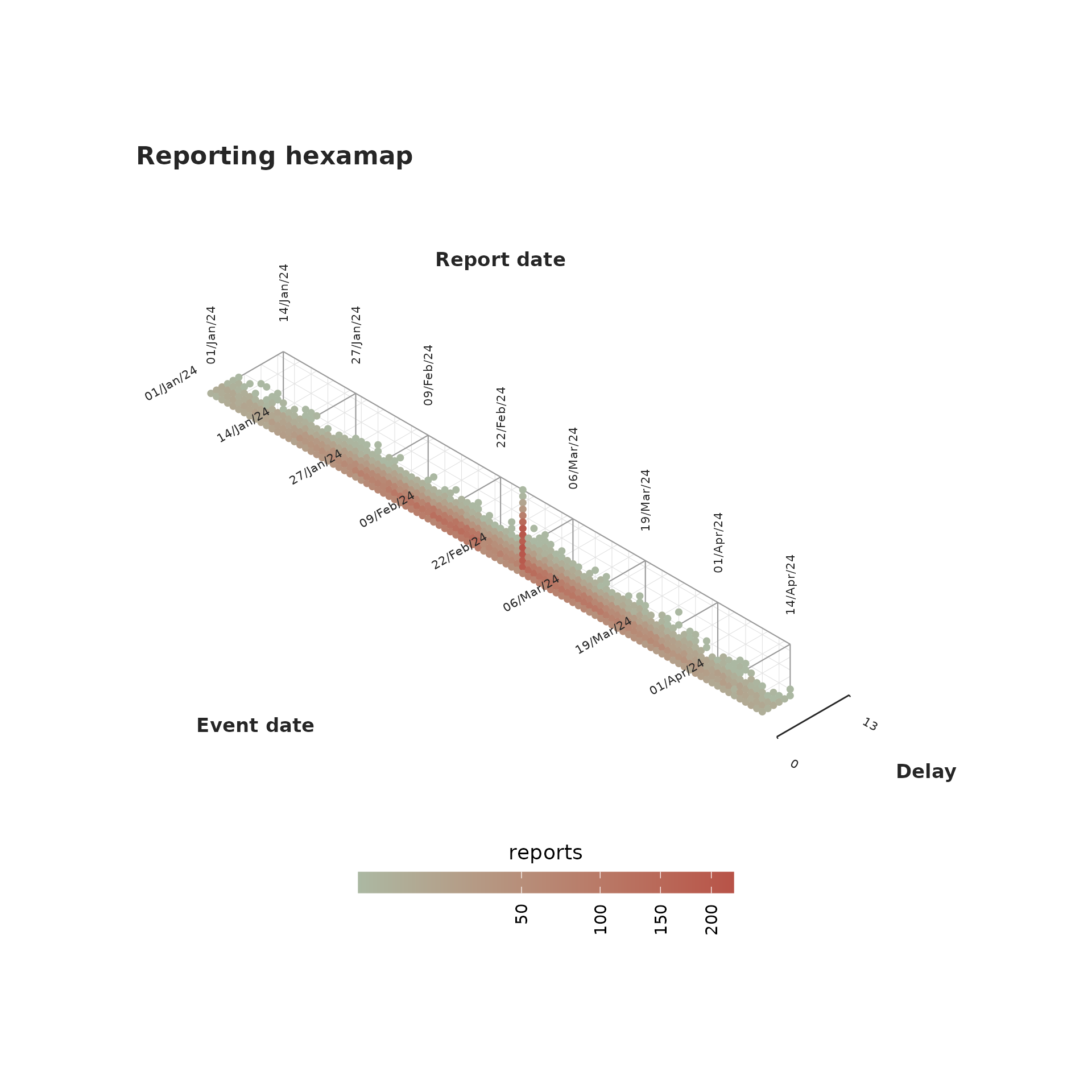

plot_reporting_hexamap(ideal, size = 3, shape = 15)

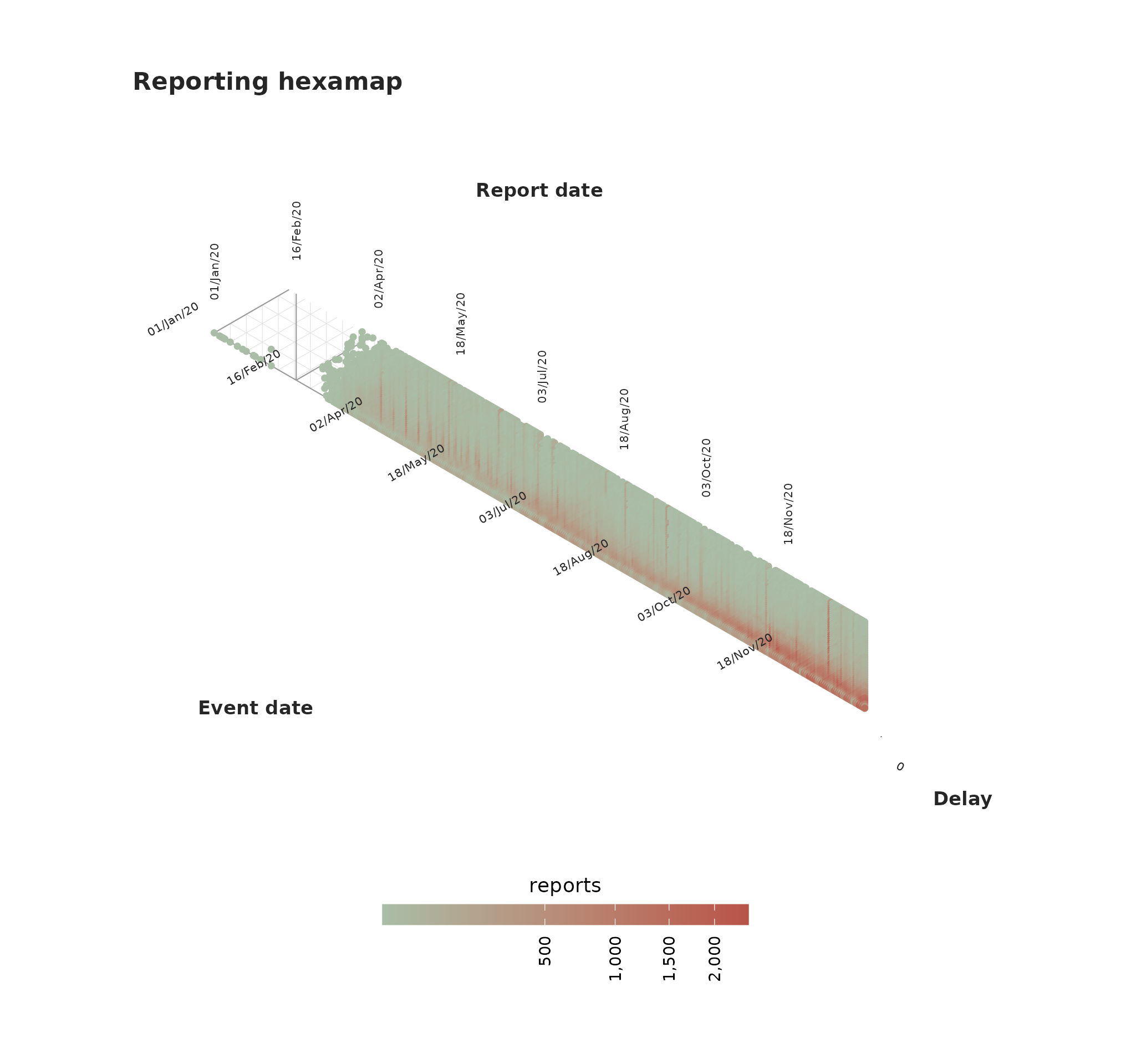

On covid the vertical stripes are the 2020 backlog releases. The delay axis is capped with max_delay to keep the map to where the reports are.

plot_reporting_hexamap(tn, max_delay = 60)

Transport vs creation

This is the main tool for detecting batches and surges. Before the plot, we will explain the whole idea. Consider a daily outbreak with reports incoming each day. Three things can change the number of reports:

  • a hold – a reporting office falls behind and some days’ reports are withheld;
  • a batch – the day the backlog (hold) is finally released, all at once;
  • a surge – an increase in the epidemic process: more people falling ill and being reported.

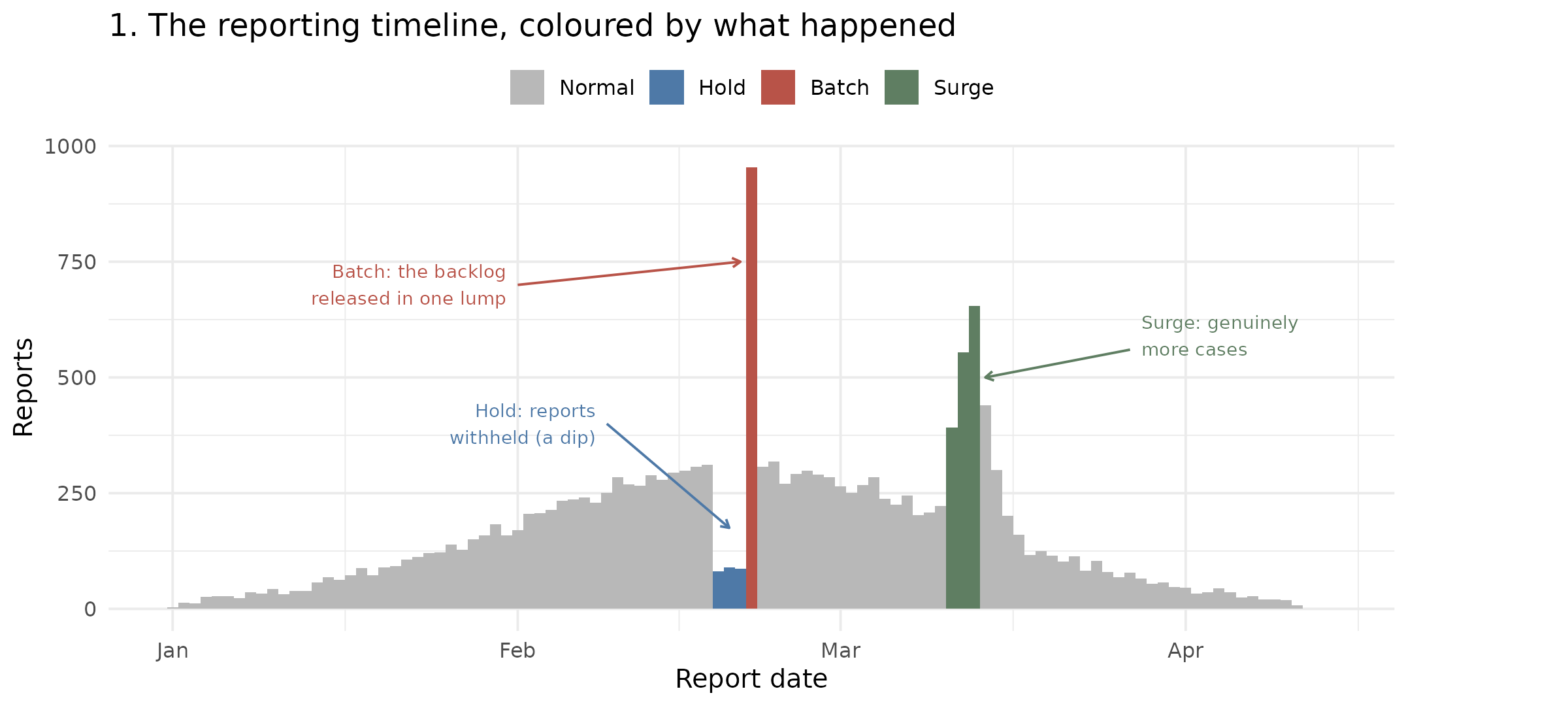

We simulate one of each in a clean epidemic and colour every day by its type (grey = ordinary day):

In the previous plot, every bar is one report date. The batch towers where the held reports land together; the hold is the small blue dip just before it; the surge is a genuine bump of new cases.

The transport discriminant turns each day into two numbers:

  • A creation score – did this stretch of days genuinely gain cases? A larger surge implies a larger creation score.
  • A transport score – were the days just before missing reports? A backlog release after a hold pushes it up.

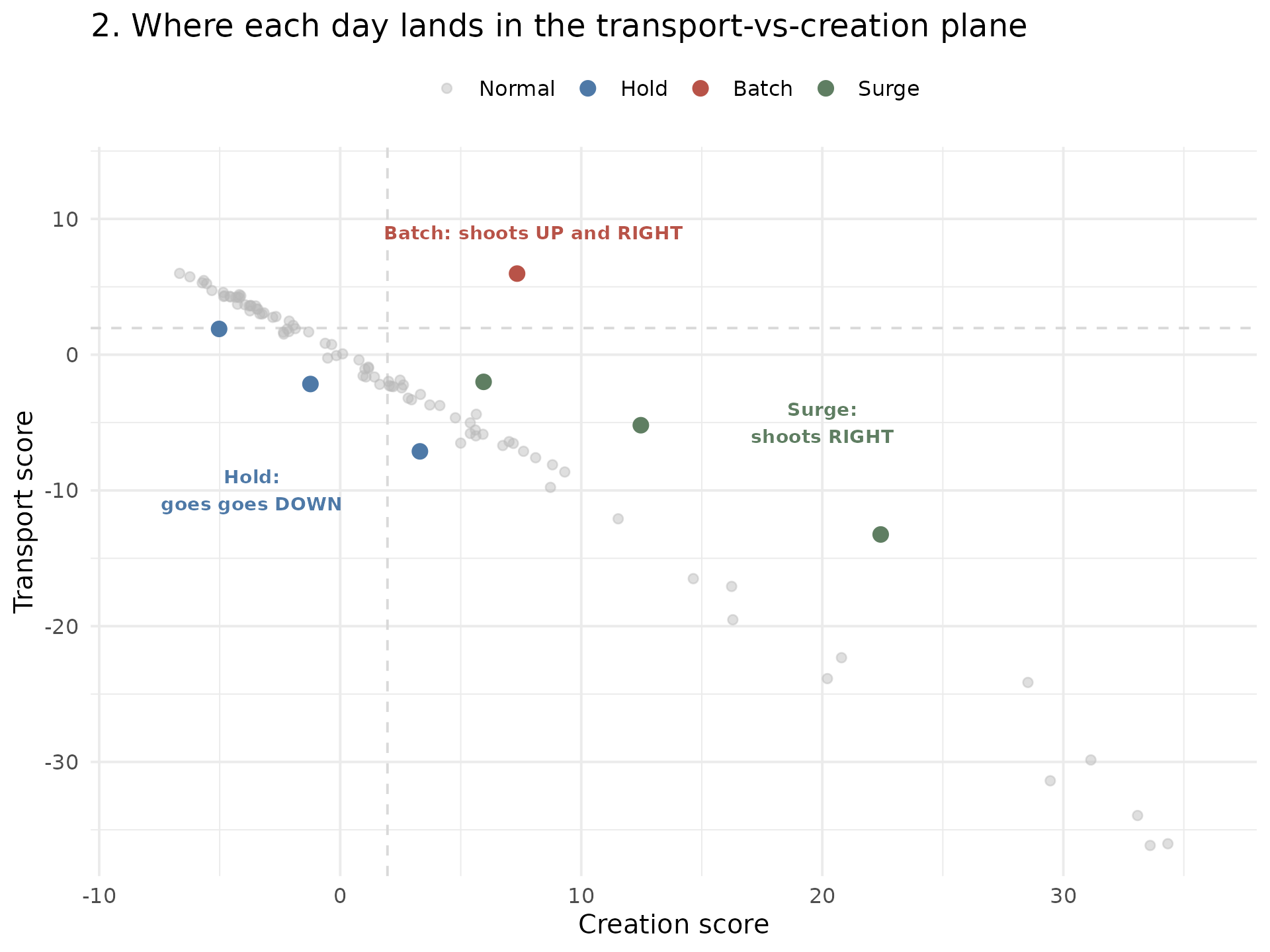

We plot every day by those two numbers and observe the directions of the three disturbances:

Identifying any bar with its dot we can conclude:

  • A batch (backlog release, red) shoots up and right – the days before were depleted (high transport) but not as many new cases were created (right);
  • A surge (green) shoots right – cases genuinely appeared (high creation), with apparent preceding hole;
  • A hold (blue) drifts left – reports have apparently gone missing (transport rising) while the window has lost cases (creation negative).

Ordinary days (grey) sit in the cloud through the middle. That is the whole idea behind transport_discriminant() and diagnose_batches(): a batch is high transport with little creation.

The transport discriminant

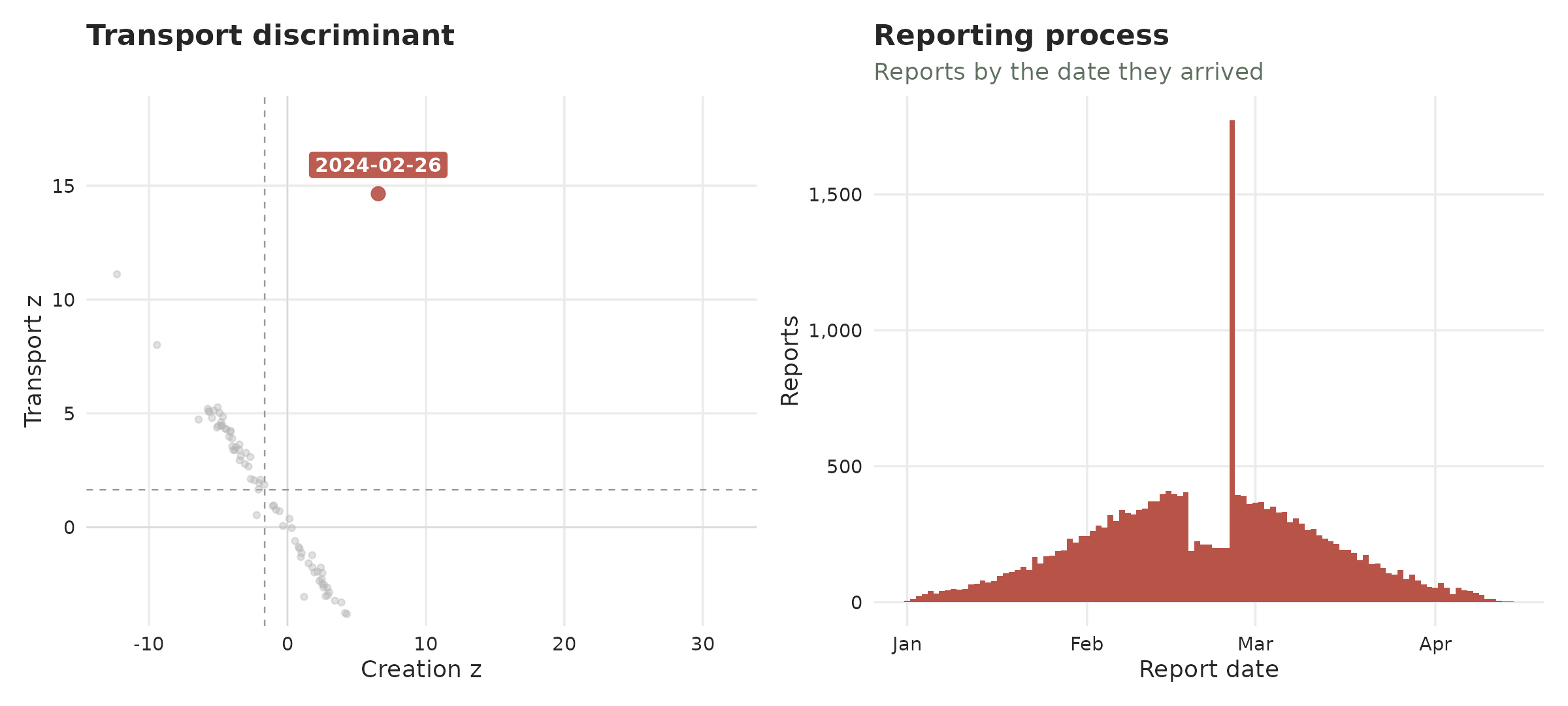

The previous plot can be done with the plot_transport_discriminant() function:

Which also works to identify the COVID-19 cases:

Recovering the data

The diagnose_batches() function runs the transport test for the batch signature and returns, for every report date, the batch flag – a Benjamini-Hochberg-corrected verdict that controls the false-discovery rate across all dates (see ?diagnose_batches for the full column reference). Keeping the batch rows gives the confirmed releases together with their deficit (how depleted the days just before were) and delta (how little the window total actually changed).

diagnose_batches(ideal) |>
  filter(batch)
#> # A tibble: 1 × 7
#>   report_date reported baseline deficit delta p_transport_bh batch
#>   <date>         <dbl>    <dbl>   <dbl> <dbl>          <dbl> <lgl>
#> 1 2024-02-26      1773     336.    972.  465.       7.03e-47 TRUE

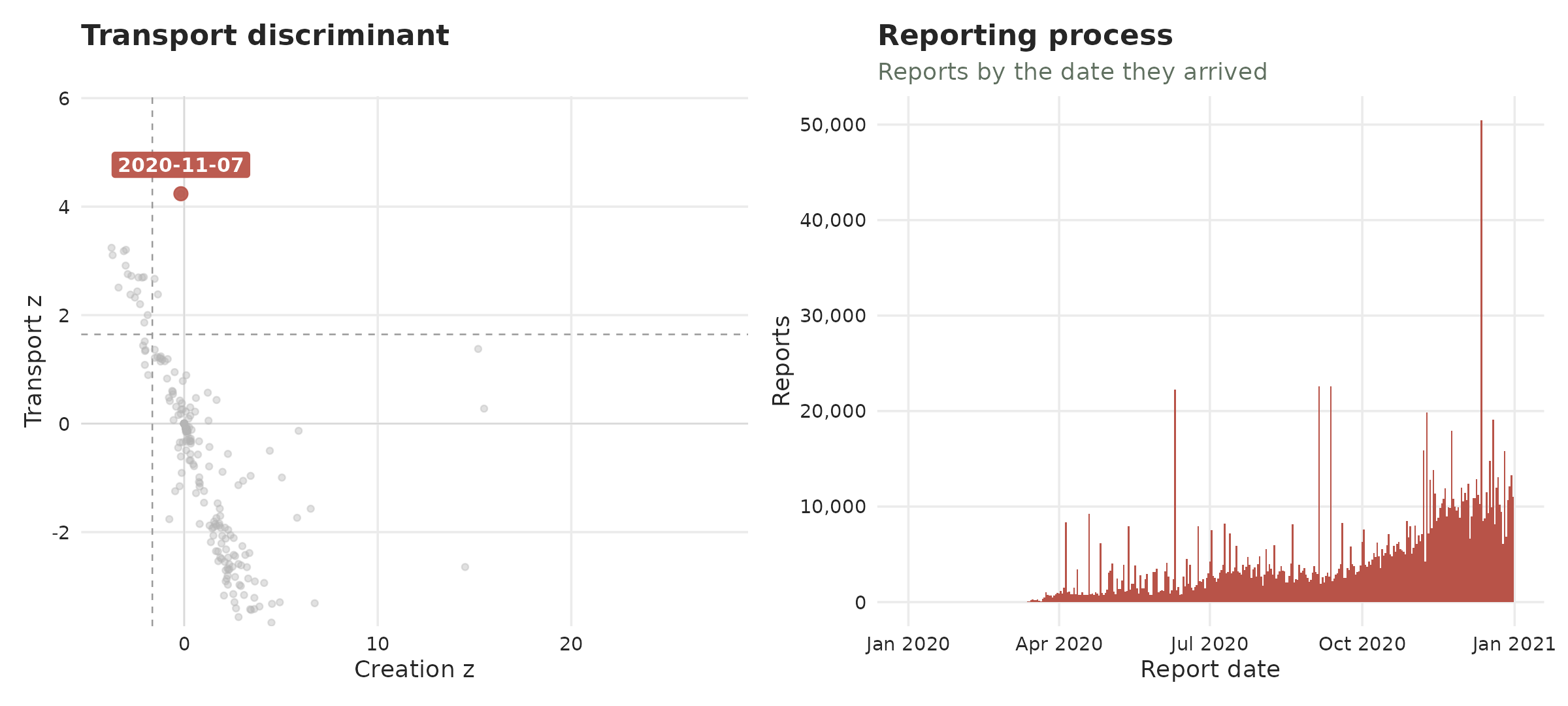

On covid we pass period = 7 to divide out the weekly reporting cadence. Only one date survives the Benjamini-Hochberg-corrected batch flag: 7 November 2020, which reported about twice its baseline and was preceded by a matching deficit of roughly the same size. That pairing is the whole test – the taller spikes of 12 December and 10 June are not flagged, because nothing was withheld beforehand to release, which makes them surges rather than batches:

diagnose_batches(tn, period = 7) |>
  filter(batch)
#> # A tibble: 1 × 7
#>   report_date reported baseline deficit delta p_transport_bh batch
#>   <date>         <dbl>    <dbl>   <dbl> <dbl>          <dbl> <lgl>
#> 1 2020-11-07     15882    8174.   8053. -345.        0.00405 TRUE

The sensitivity of the batch flag can be adapted with alpha.

If you have any questions or comments regarding the contents of this article please open an issue on Github.
