tbl.now provides an extension of the tibble() for storing, validating, and manipulating epidemiological nowcasting data. It standardizes the representation of event dates, report dates, strata, temporal covariates, and data types (linelist and cumulative), ensuring that downstream models within the diseasenowcasting ecosystem can rely on a consistent interface.
Installation
Install the development version from GitHub:
# install.packages("pak") # <- uncomment if you do not have `pak`
pak::pkg_install("RodrigoZepeda/tbl.now")Load the package:
A minimal example
Suppose you have a dataset where n cases reported on report_date belong to events occurring on event_date:
df <- tibble(
event_date = c(
ymd("2023-12-25"), ymd("2023-12-26"),
ymd("2023-12-25"), ymd("2023-12-26")
),
report_date = c(
ymd("2023-12-26"), ymd("2023-12-26"),
ymd("2023-12-27"), ymd("2023-12-27")
),
n = c(10, 2, 5, 11)
)Convert it to a tbl_now():
df_now <- df |>
tbl_now(event_date = event_date, report_date = report_date, case_count = n)
#> i Identified data as <count-incidence> with counts in column "n".
df_now
#> # A tibble: 4 x 6
#> # Data type: "count-incidence"
#> # Frequency: Event: `days` | Report: `days`
#> event_date report_date n .event_num .report_num .delay
#> <date> <date> <dbl> <dbl> <dbl> <dbl>
#> [event_date] [report_date] [cases] [...] [...] [...]
#> 1 2023-12-25 2023-12-26 10 0 1 1
#> 2 2023-12-26 2023-12-26 2 1 1 0
#> 3 2023-12-25 2023-12-27 5 0 2 2
#> 4 2023-12-26 2023-12-27 11 1 2 1
#> # --------------------------------------------------------------------------------
#> # Now: 2023-12-27 | Event date: "event_date" | Report date: "report_date"
#> # --------------------------------------------------------------------------------tbl_now() automatically:
infers that the data type is linelist (one row per event)
determines the date units (daily event and report frequencies)
computes numerical versions of the dates:
.event_num,.report_num, and.delaysets the now to the most recent reporting date
Use it like any tibble:
df_now |>
filter(n > 5)
#> # A tibble: 2 x 6
#> # Data type: "count-incidence"
#> # Frequency: Event: `days` | Report: `days`
#> event_date report_date n .event_num .report_num .delay
#> <date> <date> <dbl> <dbl> <dbl> <dbl>
#> [event_date] [report_date] [cases] [...] [...] [...]
#> 1 2023-12-25 2023-12-26 10 0 1 1
#> 2 2023-12-26 2023-12-27 11 1 2 1
#> # --------------------------------------------------------------------------------
#> # Now: 2023-12-27 | Event date: "event_date" | Report date: "report_date"
#> # --------------------------------------------------------------------------------Note Linelist, count-incidence and count-cumulative data is available for a
tbl_now. See the data types section oftbl_now()for more information.
Adding strata
If strata was given, the tbl_now() can easily tag the corresponding strata.
# Add the column using dplyr:
df_now <- df_now |>
mutate(sex = c("M", "M", "F", "M"))
df_now
#> # A tibble: 4 x 7
#> # Data type: "count-incidence"
#> # Frequency: Event: `days` | Report: `days`
#> event_date report_date n .event_num .report_num .delay sex
#> <date> <date> <dbl> <dbl> <dbl> <dbl> <chr>
#> [event_date] [report_date] [cases] [...] [...] [...] [...]
#> 1 2023-12-25 2023-12-26 10 0 1 1 M
#> 2 2023-12-26 2023-12-26 2 1 1 0 M
#> 3 2023-12-25 2023-12-27 5 0 2 2 F
#> 4 2023-12-26 2023-12-27 11 1 2 1 M
#> # --------------------------------------------------------------------------------
#> # Now: 2023-12-27 | Event date: "event_date" | Report date: "report_date"
#> # --------------------------------------------------------------------------------Use the add_strata to specify the new column is a stratum:
df_now |>
add_strata("sex")
#> # A tibble: 4 x 7
#> # Data type: "count-incidence"
#> # Frequency: Event: `days` | Report: `days`
#> event_date report_date n .event_num .report_num .delay sex
#> <date> <date> <dbl> <dbl> <dbl> <dbl> <chr>
#> [event_date] [report_date] [cases] [...] [...] [...] [strata]
#> 1 2023-12-25 2023-12-26 10 0 1 1 M
#> 2 2023-12-26 2023-12-26 2 1 1 0 M
#> 3 2023-12-25 2023-12-27 5 0 2 2 F
#> 4 2023-12-26 2023-12-27 11 1 2 1 M
#> # --------------------------------------------------------------------------------
#> # Now: 2023-12-27 | Event date: "event_date" | Report date: "report_date"
#> # Strata: "sex"
#> # --------------------------------------------------------------------------------The object now records "sex" as a stratification variable, preserved through downstream operations.
Adding temporal effects
Temporal covariates help nowcasting models incorporate weekly seasonality, holiday effects, etc. Define the effects:
t_eff <- temporal_effects(
day_of_week = TRUE,
week_of_year = TRUE,
holidays = cal_us_federal()
)
t_eff
#>
#> -- Temporal Effects ------------------------------------------------------------
#> The following effects are in place:
#> * "day_of_week"
#> * "week_of_year"
#> * "holidays":
#> 1. New Year's Day, US Martin Luther King Jr. Day, US Presidents' Day, US
#> Memorial Day, US Juneteenth, US Independence Day, US Labor Day, US Indigenous
#> Peoples' Day, US Veterans Day, US Thanksgiving, and ChristmasAttach them to the dataset:
df_now <- df_now |>
add_temporal_effects(t_eff)
df_now
#> # A tibble: 4 x 7
#> # Data type: "count-incidence"
#> # Frequency: Event: `days` | Report: `days`
#> event_date report_date n .event_num .report_num .delay sex
#> <date> <date> <dbl> <dbl> <dbl> <dbl> <chr>
#> [event_date] [report_date] [cases] [...] [...] [...] [...]
#> 1 2023-12-25 2023-12-26 10 0 1 1 M
#> 2 2023-12-26 2023-12-26 2 1 1 0 M
#> 3 2023-12-25 2023-12-27 5 0 2 2 F
#> 4 2023-12-26 2023-12-27 11 1 2 1 M
#> # --------------------------------------------------------------------------------
#> # Now: 2023-12-27 | Event date: "event_date" | Report date: "report_date"
#> # T. effects (lazy): [event_date] day_of_week, week_of_year, holidays
#> # --------------------------------------------------------------------------------This lazily adds to the table day_of_week, week_of_year, and holiday related to event_date. However it does not compute. Use compute_temporal_effects() to add them as columns:
df_now |>
compute_temporal_effects()
#> # A tibble: 4 x 10
#> # Data type: "count-incidence"
#> # Frequency: Event: `days` | Report: `days`
#> event_date report_date n .event_num .report_num .delay sex
#> <date> <date> <dbl> <dbl> <dbl> <dbl> <chr>
#> [event_date] [report_date] [cases] [...] [...] [...] [...]
#> 1 2023-12-25 2023-12-26 10 0 1 1 M
#> 2 2023-12-26 2023-12-26 2 1 1 0 M
#> 3 2023-12-25 2023-12-27 5 0 2 2 F
#> 4 2023-12-26 2023-12-27 11 1 2 1 M
#> .event_day_of_week .event_week_of_year .event_holiday
#> <int> <int> <int>
#> [t_effect] [t_effect] [t_effect]
#> 1 2 1 1
#> 2 3 1 0
#> 3 2 1 1
#> 4 3 1 0
#> # --------------------------------------------------------------------------------
#> # Now: 2023-12-27 | Event date: "event_date" | Report date: "report_date"
#> # T. effects: [event_date] day_of_week, week_of_year, holidays
#> # T. effect cols: ".event_day_of_week", ".event_week_of_year", and
#> # ".event_holiday"
#> # --------------------------------------------------------------------------------You can also attach effects related to the report_date:
r_eff <- temporal_effects(day_of_week = TRUE)
df_now |>
add_temporal_effects(r_eff, date_type = "report_date")
#> # A tibble: 4 x 7
#> # Data type: "count-incidence"
#> # Frequency: Event: `days` | Report: `days`
#> event_date report_date n .event_num .report_num .delay sex
#> <date> <date> <dbl> <dbl> <dbl> <dbl> <chr>
#> [event_date] [report_date] [cases] [...] [...] [...] [...]
#> 1 2023-12-25 2023-12-26 10 0 1 1 M
#> 2 2023-12-26 2023-12-26 2 1 1 0 M
#> 3 2023-12-25 2023-12-27 5 0 2 2 F
#> 4 2023-12-26 2023-12-27 11 1 2 1 M
#> # --------------------------------------------------------------------------------
#> # Now: 2023-12-27 | Event date: "event_date" | Report date: "report_date"
#> # T. effects (lazy): [event_date] day_of_week, week_of_year, holidays |
#> # [report_date] day_of_week
#> # --------------------------------------------------------------------------------Working with the “now”
You may override the default now to perform historical evaluation:
df_pruned <- df_now |>
filter(report_date <= ymd("2023-12-26")) |>
change_now(ymd("2023-12-26"))Retrieve the current active nowcast horizon:
get_now(df_pruned)
#> [1] "2023-12-26"Visualizing a tbl_now

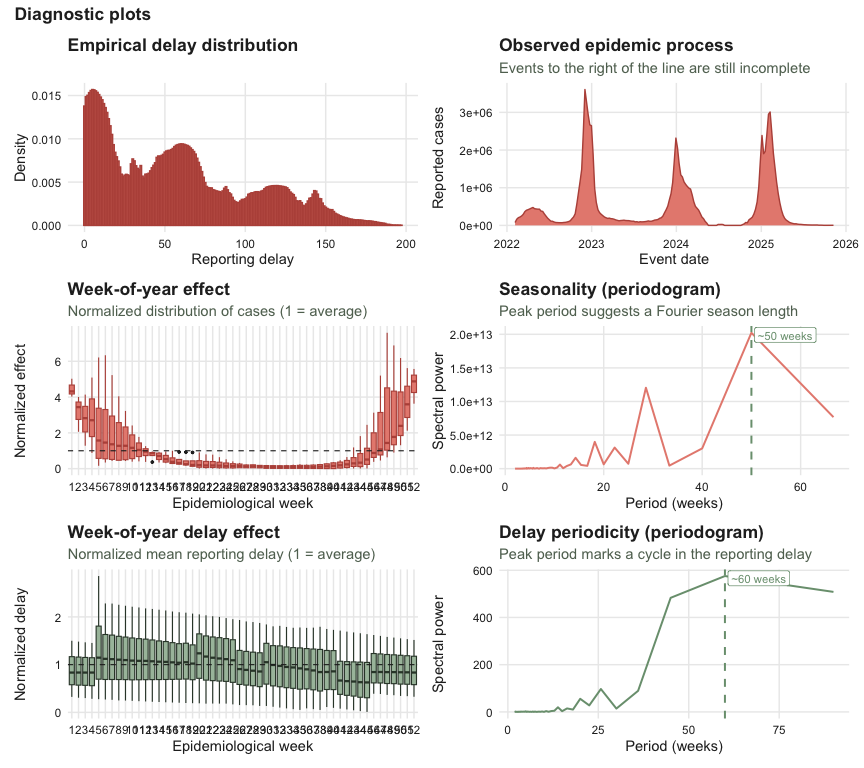

The autoplot() method gives a quick diagnostic overview of a tbl_now.
library(ggplot2)
library(patchwork)
data("flusight")
flusight_now <- tbl_now(flusight,
event_date = target_end_date,
report_date = as_of,
case_count = observation,
verbose = FALSE
)
autoplot(flusight_now, level = 1)
Diagnosing reporting problems
tbl.now also helps diagnose two common reporting artefacts directly from the data.
Does the reporting delay drift over time? plot_delay_drift() draws a rolling fan chart of the delay distribution, while test_delay_drift() and test_delay_changepoint() test for a gradual trend or an abrupt change (with an autocorrelation-robust test, since a delay series is correlated with itself).
Batch reporting. Laboratories sometimes withhold results and then release a whole backlog at once. Such a batch moves reports along the report axis without creating them, so a window spanning the lull and the spike has an unchanged total — unlike a genuine epidemic surge, which adds cases. batch_screen() uses this to tell the two apart, per report date:
data(denguedat)
dengue <- tbl_now(denguedat,
event_date = onset_week, report_date = report_week, verbose = FALSE
)
batches <- batch_screen(dengue, lookback = 2)
batches |>
filter(batch) |>
select(report_date, reported, baseline, deficit, delta, classification)
#> # A tibble: 69 x 6
#> report_date reported baseline deficit delta classification
#> <date> <dbl> <dbl> <dbl> <dbl> <chr>
#> 1 1990-12-03 124 67 -44 101 batch_and_surge
#> 2 1991-02-04 53 38.4 14.5 0.0625 batch
#> 3 1991-08-12 61 50.2 37.3 -26.6 batch
#> 4 1991-12-02 241 154 12 75 batch_and_surge
#> 5 1992-01-20 126 99.2 50.0 -23.2 batch
#> 6 1992-06-22 54 41.1 18.8 -5.83 batch
#> 7 1993-01-18 150 62.2 -2.80 90.6 batch_and_surge
#> 8 1993-03-22 46 31.4 20.4 -5.73 batch
#> 9 1993-09-27 65 40.7 21.5 2.85 batch
#> 10 1993-10-25 83 53.4 24.7 4.88 batch
#> # i 59 more rowsA spike paid for by a preceding deficit, with delta near zero, is a batch; a large delta would instead signal a real surge. batch_shape_test() adds a complementary check on whether a flagged date drew on unusually old event dates. These functions are experimental — see the Batch detection article.
Extreme delays
Extreme delays can be censored with the censor_delays_above() function that assigns upper bounds to the delay. In the following data frame for example, an extreme delay of 300 is marked as censored with that function:
df <- data.frame(
onset = as.Date("2020-01-01") + c(0, 0, 1, 2),
reported = as.Date("2020-01-01") + c(1, 5, 2, 300)
)
tn <- tbl_now(df,
event_date = onset, report_date = reported,
data_type = "linelist", verbose = FALSE
)
# the 300-day report becomes censored (an upper bound on its delay)
censor_delays_above(tn, max_delay = 60)
#> i Marked 1 report with delay > 60 days as censored.
#> * This delay is now an upper bound (is_censored).
#> # A tibble: 4 x 6
#> # Data type: "linelist"
#> # Frequency: Event: `days` | Report: `days`
#> onset reported .event_num .report_num .delay .is_censored
#> <date> <date> <dbl> <dbl> <dbl> <lgl>
#> [event_date] [report_date] [...] [...] [...] [is_censored]
#> 1 2020-01-01 2020-01-02 0 1 1 FALSE
#> 2 2020-01-01 2020-01-06 0 5 5 FALSE
#> 3 2020-01-02 2020-01-03 1 2 1 FALSE
#> 4 2020-01-03 2020-10-27 2 300 298 TRUE
#> # --------------------------------------------------------------------------------
#> # Now: 2020-10-27 | Event date: "onset" | Report date: "reported"
#> # Right-censored indicator: ".is_censored"
#> # --------------------------------------------------------------------------------Learning more
- Introduction vignette: https://rodrigozepeda.github.io/tbl.now/articles/tbl.now.html
- Full walk-through with real CDC Flusight data: https://rodrigozepeda.github.io/tbl.now/articles/Example.html
- Package reference: https://rodrigozepeda.github.io/tbl.now/reference/
