Diagnosing reporting batches and other reporting-delay artifacts

batch-reporting.Rmd

Batch reporting

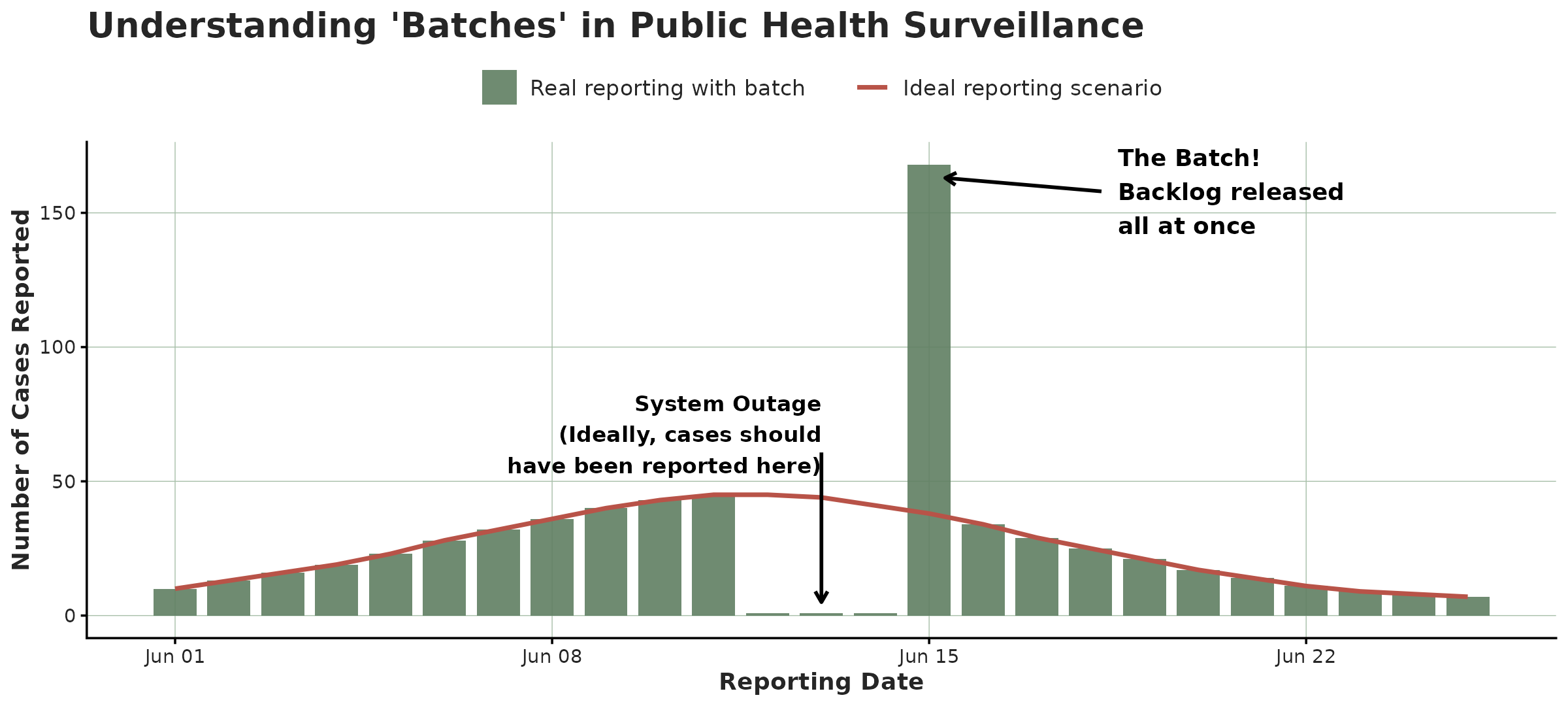

Surveillance data does not always arrive smoothly. Sometimes the reporting system halts or reduces its output (e.g. a data-system outage, an overwhelmed jurisdiction) and the backlog is released later all at once. That release is called a batch: a collection of reports from previous periods that were held and reported all at once during a different reporting period. Intuivitively one can think of a batch as a collection of reports that –in an ideal scenario– should have been reported on a previous date but were actually released later.

A batch is easy to confuse with an epidemic surge. The important part is that the batch happens on the reporting date axis while a surge happens on the event date axis. A batch just moves reports to a later date not adding new cases while a real epidemic surge adds new cases. The tools here are designed to help you visualize that difference.

This article shows each plot twice: first on a clean, made-up outbreak with one obvious batch (so you learn the signature), then on real, COVID-19 data from the CDC (see covid_us).

Two datasets to compare

The made-up outbreak.

This simulation consists of a bell-shaped curve over a hundred days, each case reported within a few days. For one week near the peak, the reporting system slows down with half of each day’s reports being held back and released days after. That release is the batch.

set.seed(82495)
#Simulate a curve
onset_days <- as.Date("2024-01-01") + 0:99
bell       <- dnorm(seq(-2.5, 2.5, length.out = 100))
per_day    <- round(400 * bell / max(bell)) + 8
onset      <- rep(onset_days, per_day)
reported   <- onset + rpois(length(onset), 1.5)

clean_tn <- tbl_now(tibble(onset = onset, reported = reported),
                    event_date = onset, report_date = reported,
                    data_type = "linelist", verbose = FALSE)

# Simulate a batch
ideal <- simulate_batch(clean_tn,
  closed_dates  = seq(as.Date("2024-02-19"), by = "day", length.out = 7),
  held_fraction = 0.5)

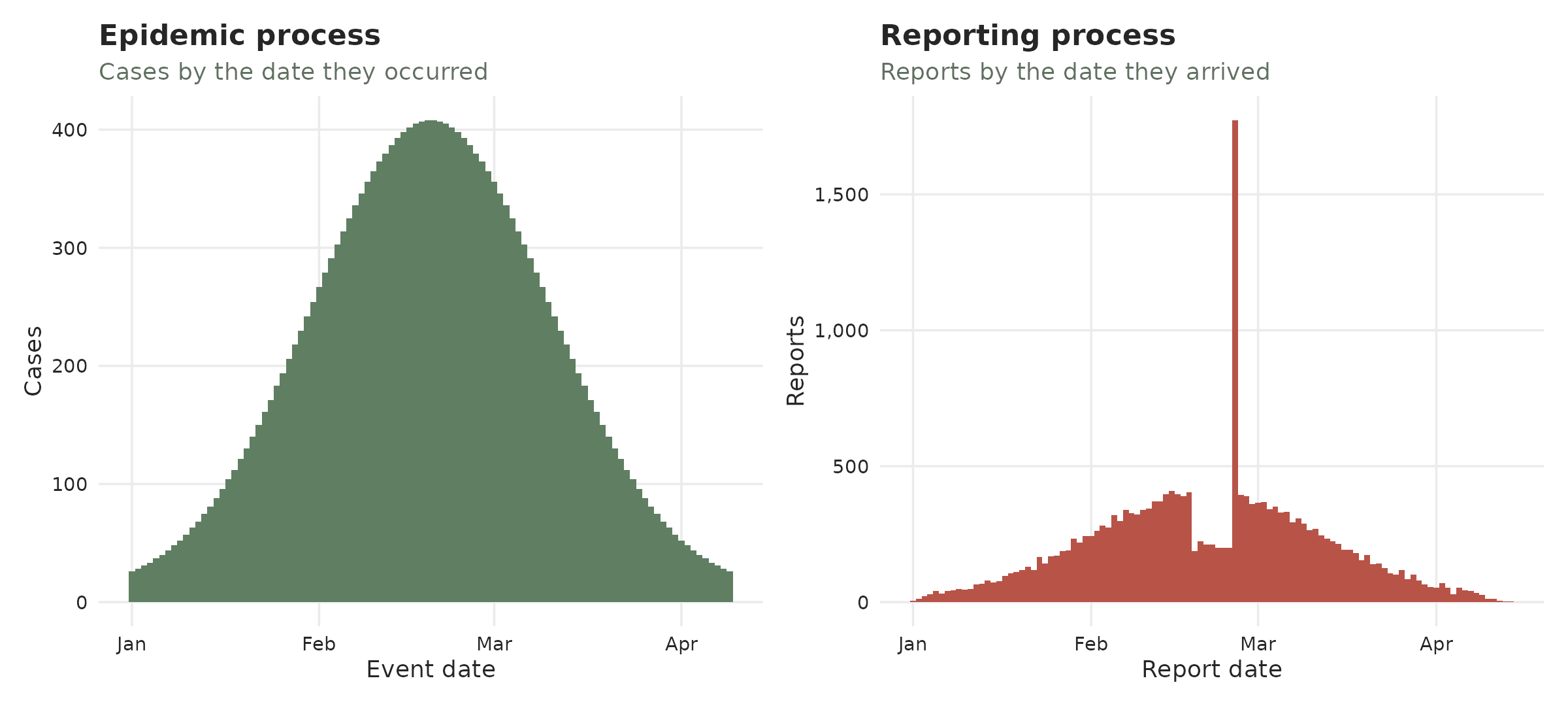

We can see the simulated data both from the event-date and the report-date perspectives:

The real data

covid_us comes from the CDC’s individual-level COVID-19 Case Surveillance Public Use Data. These represent cases whose event date (cdc_case_earliest_dt) and report date (cdc_report_dt) both fall before September 2020. The picture shows what it would have looked back then.

data(covid_us)

covid_early <- covid_us %>%
  filter(cdc_case_earliest_dt < as.Date("2020-09-01") &
           cdc_report_dt < as.Date("2020-09-01"))

tn <- tbl_now(covid_early, event_date = cdc_case_earliest_dt,
              report_date = cdc_report_dt, case_count = n,
              data_type = "count-incidence", verbose = FALSE)

Half of all cases were reported within a few days, but the tail is long: some cases take weeks or months to surface.

stats::quantile(rep(tn$.delay, tn$n), c(0.5, 0.75, 0.9, 0.99))
#> 50% 75% 90% 99%
#>   4  13  42  88

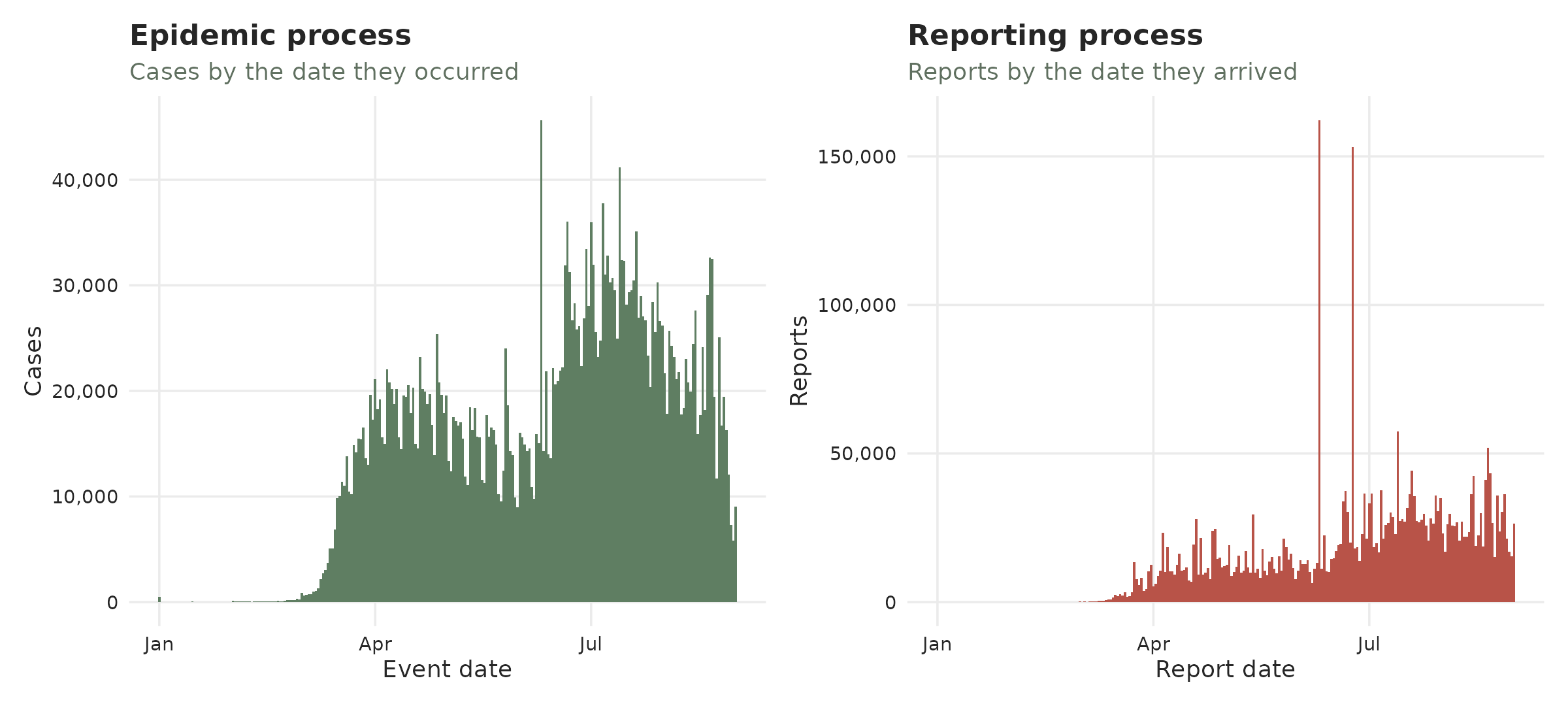

We can see this dataset again from both the event-date and the report-date perspectives:

The reporting process

This plot, which we have previously shown, shows how many reports arrived by date. Batches or surges might correspond to spikes towering over their neighbours.

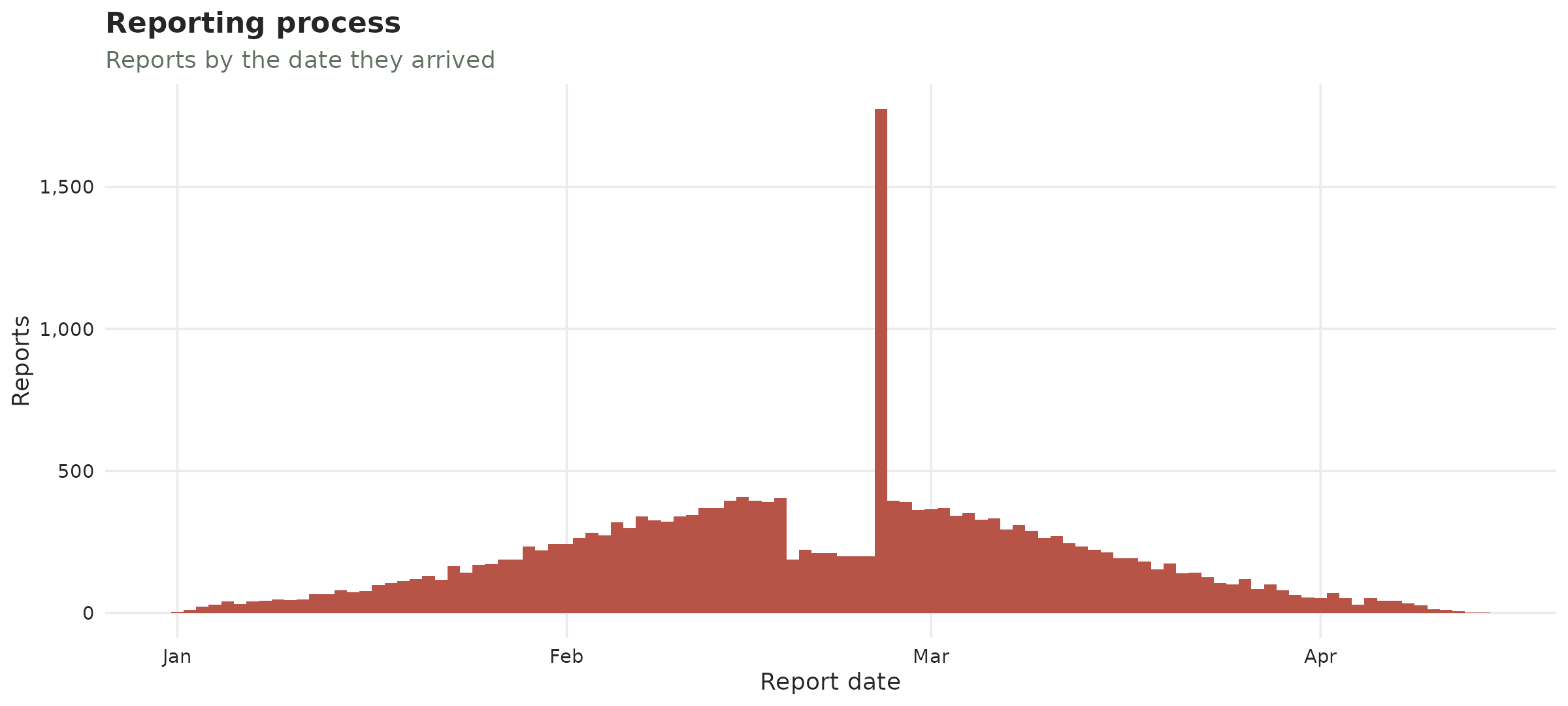

Reporting process of the simulated data

Reporting process of the simulated data

On the real data the reporting is spikier; however, a couple of peaks in June 2020 stick up where smooth epidemic reporting should be. Those are reporting artefacts either pure backlog releases, or a mix of backlog + a genuine surge (we’ll come back to this characterization later). The tallest is a single day of about 160K reports, well above the 20-40K that arrive on a typical day that summer.

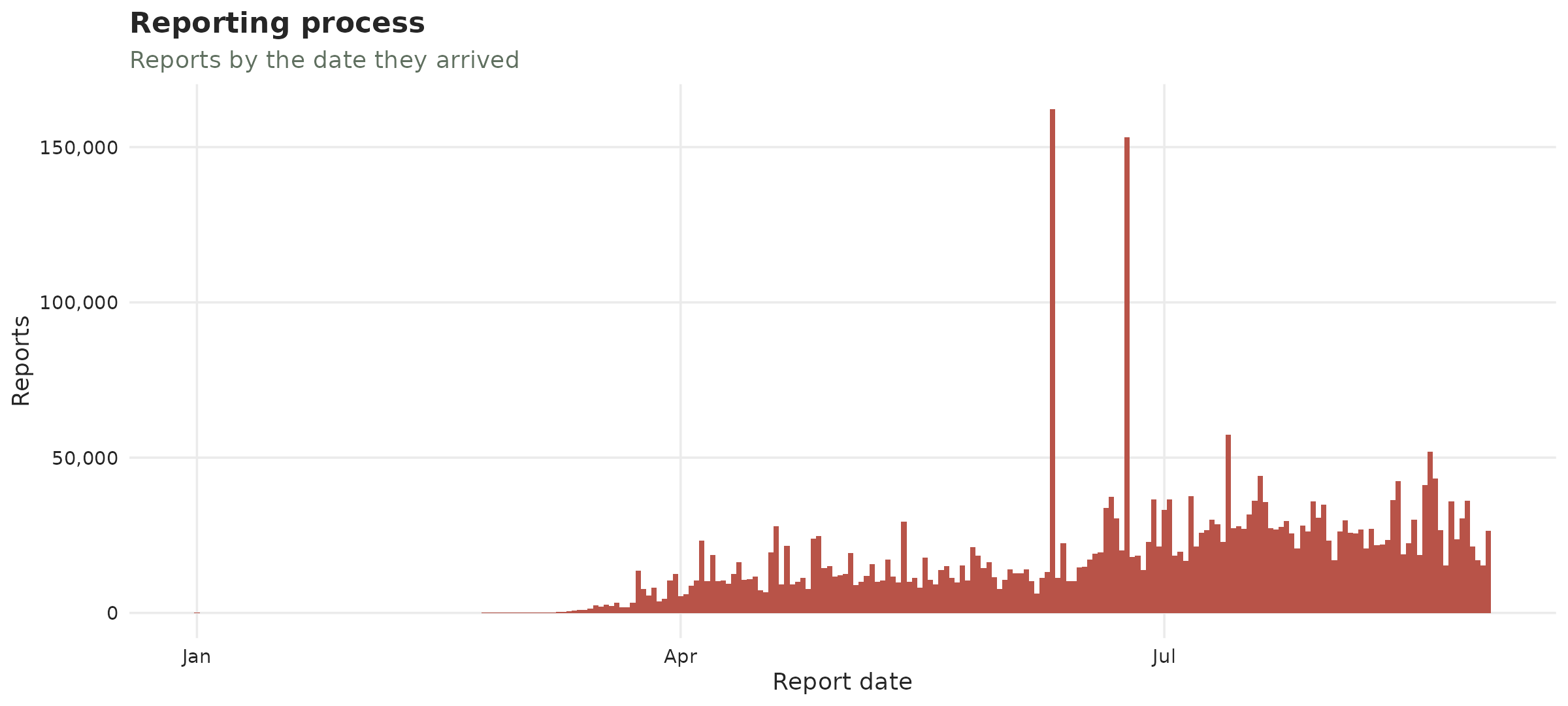

Reporting process of the COVID-19 data

Reporting process of the COVID-19 data

The reporting triangle

We provide two different visualizations of the reporting triangle. In both we plot the three temporal dimensions involved in the process: the event date, the reporting date and the delay. We cover the plots in tiles coloured by how many cases were registered then.

The classical reporting triangle

The classical view is given by plot_reporting_triangle() where each tile is described by when it happened (across) and how long they took to be reported (vertical). The diagonal shows reports that arrive on the same day.

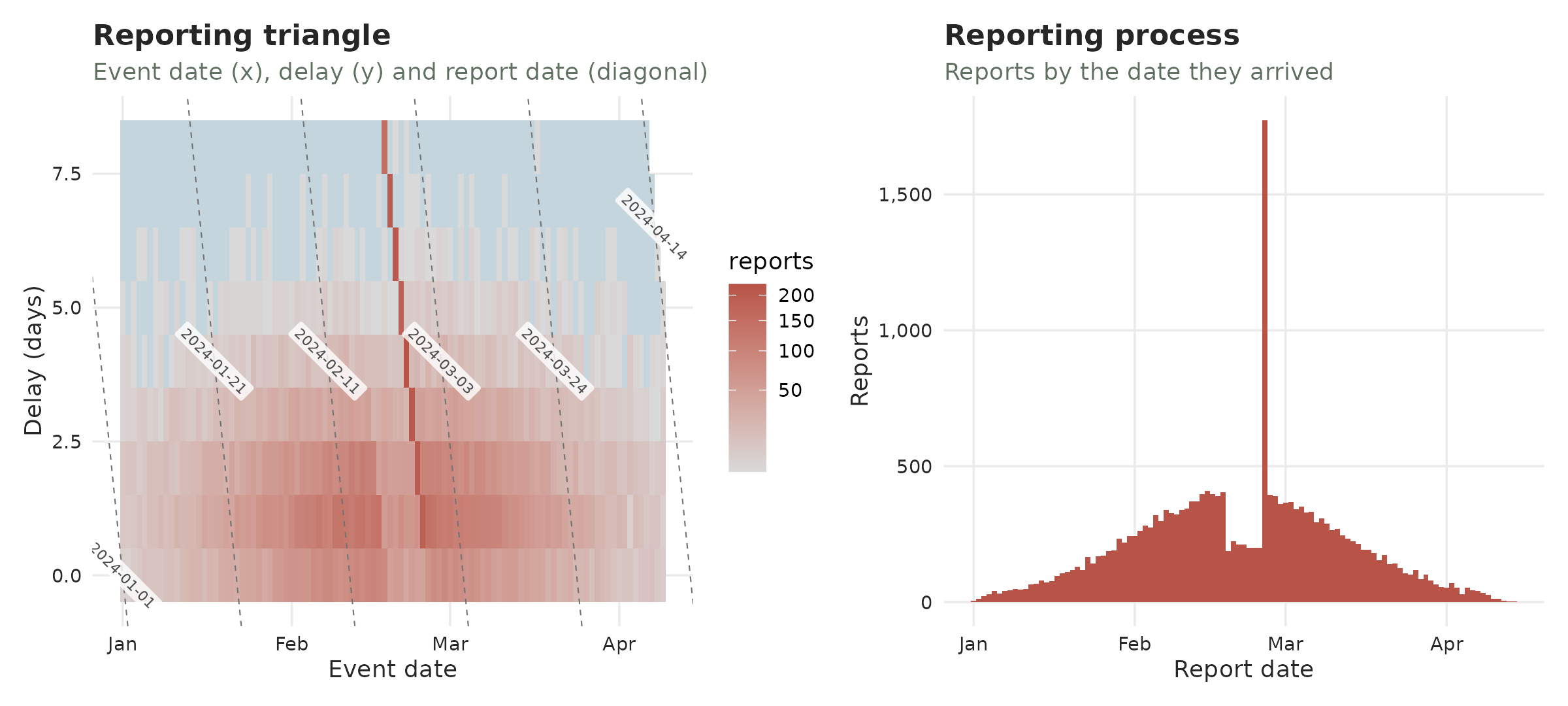

An indicator of a batch is a bright diagonal reaching high up which reporesents many delayed cases being all reported on the same day.

Classical reporting triangle of the simulated data

Classical reporting triangle of the simulated data

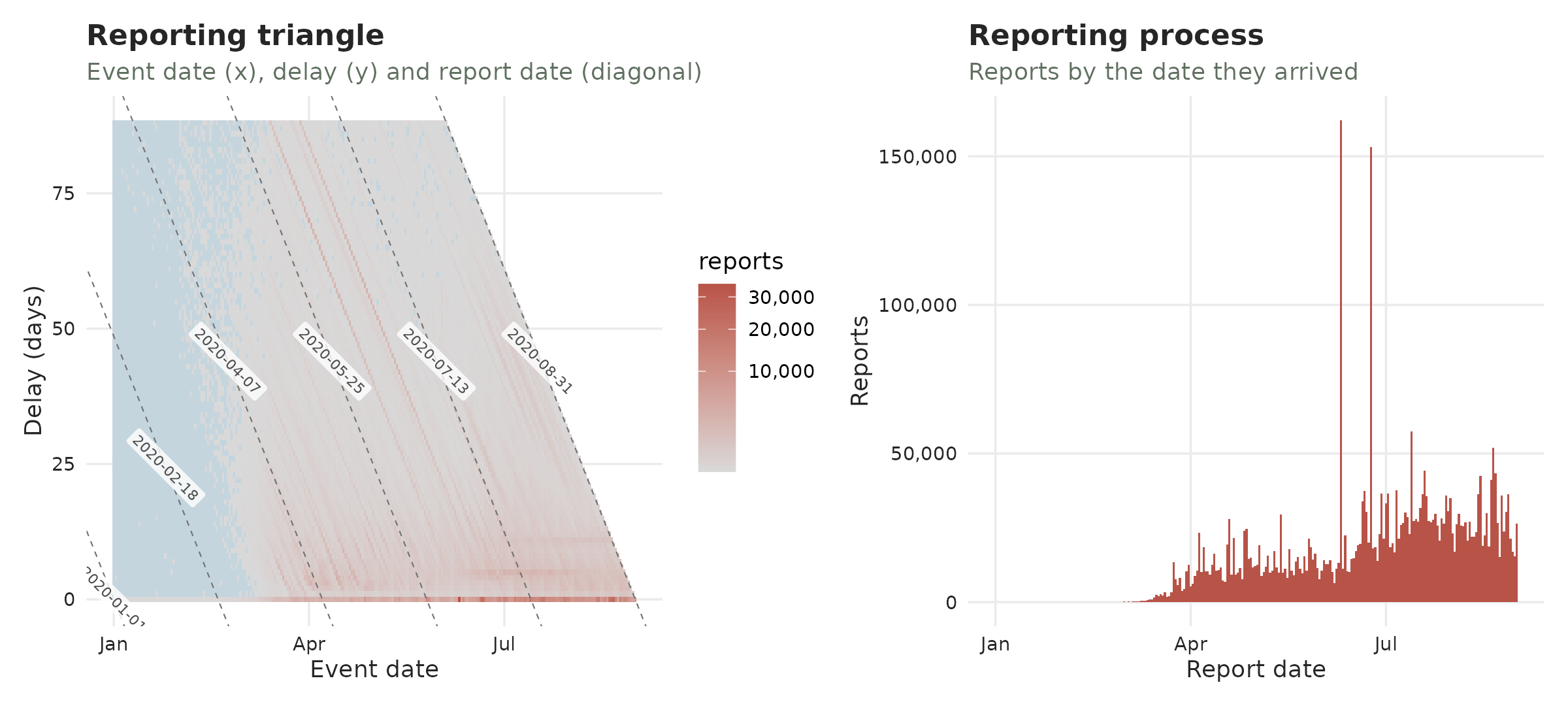

On COVID-19, the triangle is a broad blue-grey haze (most cases reported over many months) crossed by two bright diagonals. They correspond to the same spikes seen for June 2020:

Classical reporting triangle of the COVID-19 data

Classical reporting triangle of the COVID-19 data

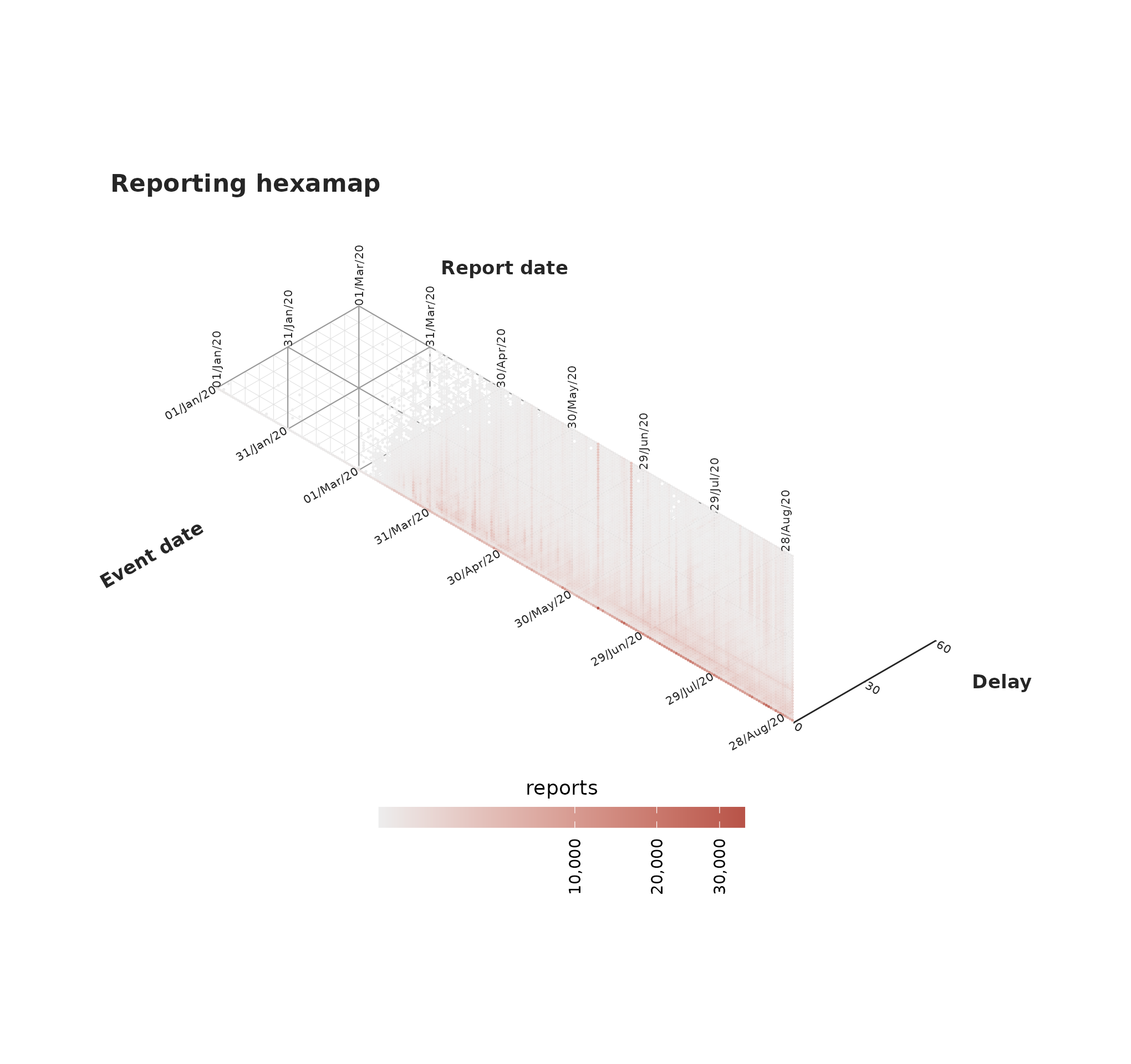

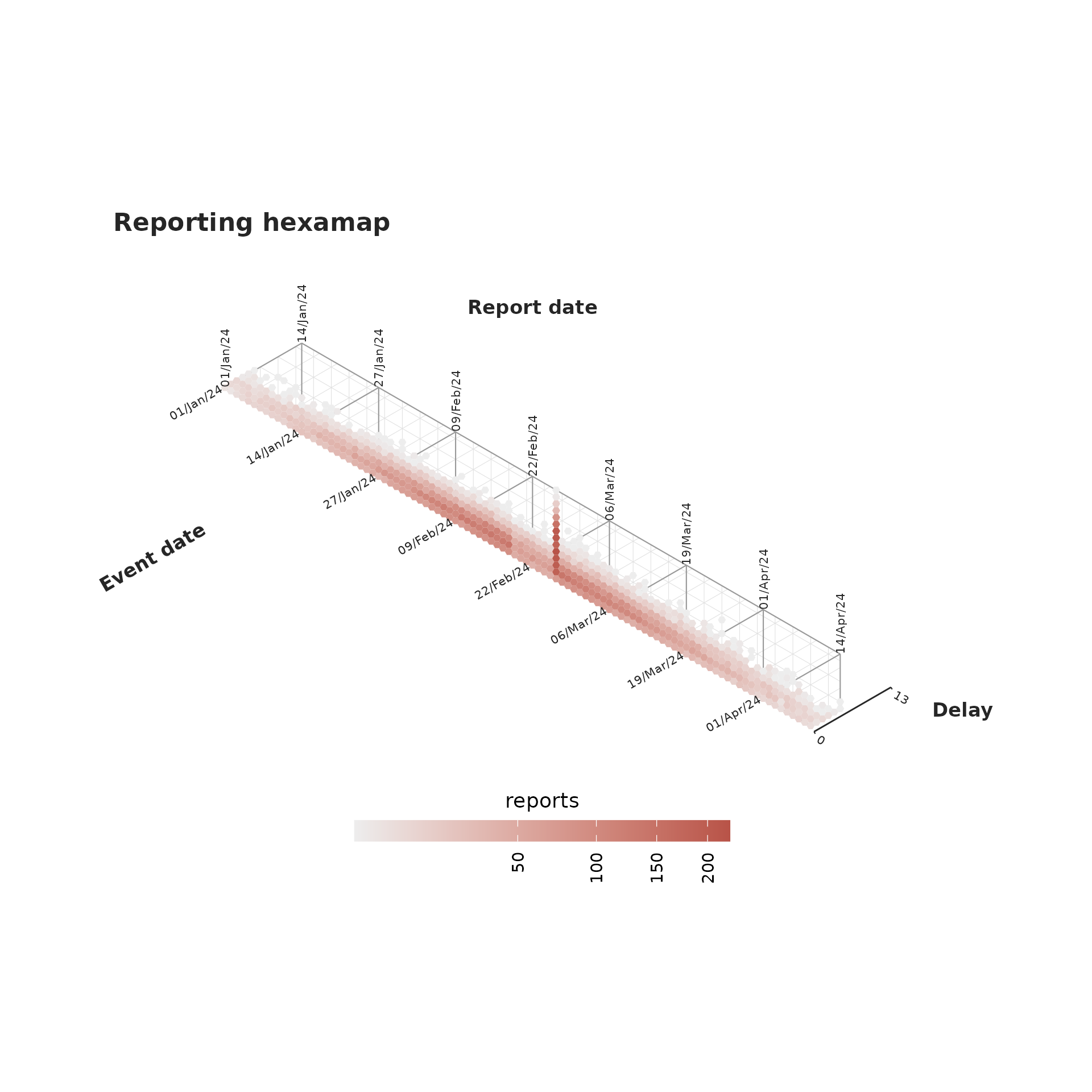

The reporting hexamap

Event date, report date and reporting delay can be seen as an age-period-cohort triple (report = event + delay, exactly period = cohort + age), so the reporting triangle can be drawn as a hexamap in the style of Jalal and Burke (2020): each (event, delay) cell is a hexagon, coloured by its report count, with event date, report date and delay running along the three 60-degree axes. Because a batch is a happens in the report date, it shows up as a vertical stripe; the fast reporting bulk sits along the short-delay bottom edge.

On covid the vertical stripes are the spring/summer-2020 backlog releases. The delay axis is capped with max_delay to keep the map to where the reports are.

plot_reporting_hexamap(tn, max_delay = 60)

Scalograms

The scalogram functions are very experimental. We have yet to confirm they work for all batch cases. Feel free to skip to the section on transport

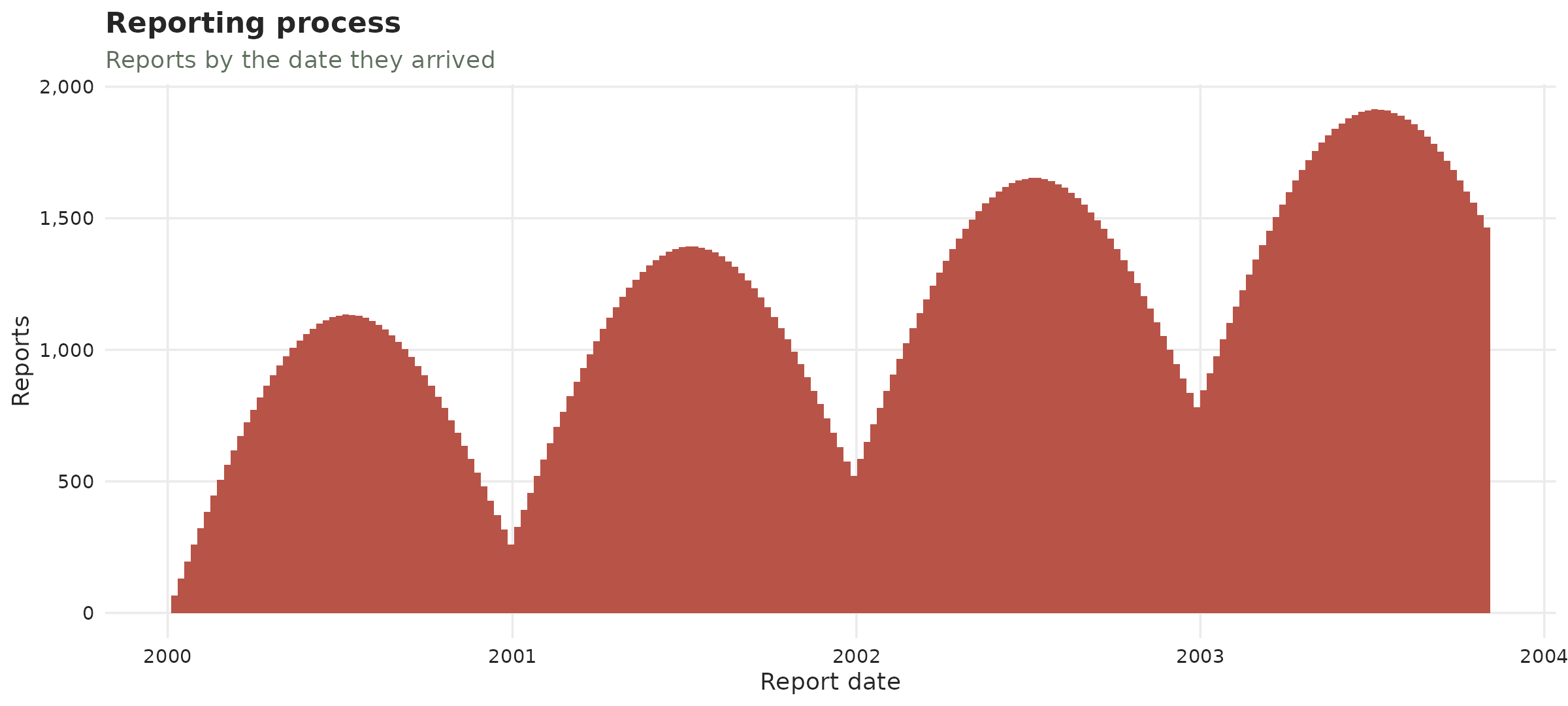

Scalograms show reductions of cases. For this example, consider the following simulated reporting process:

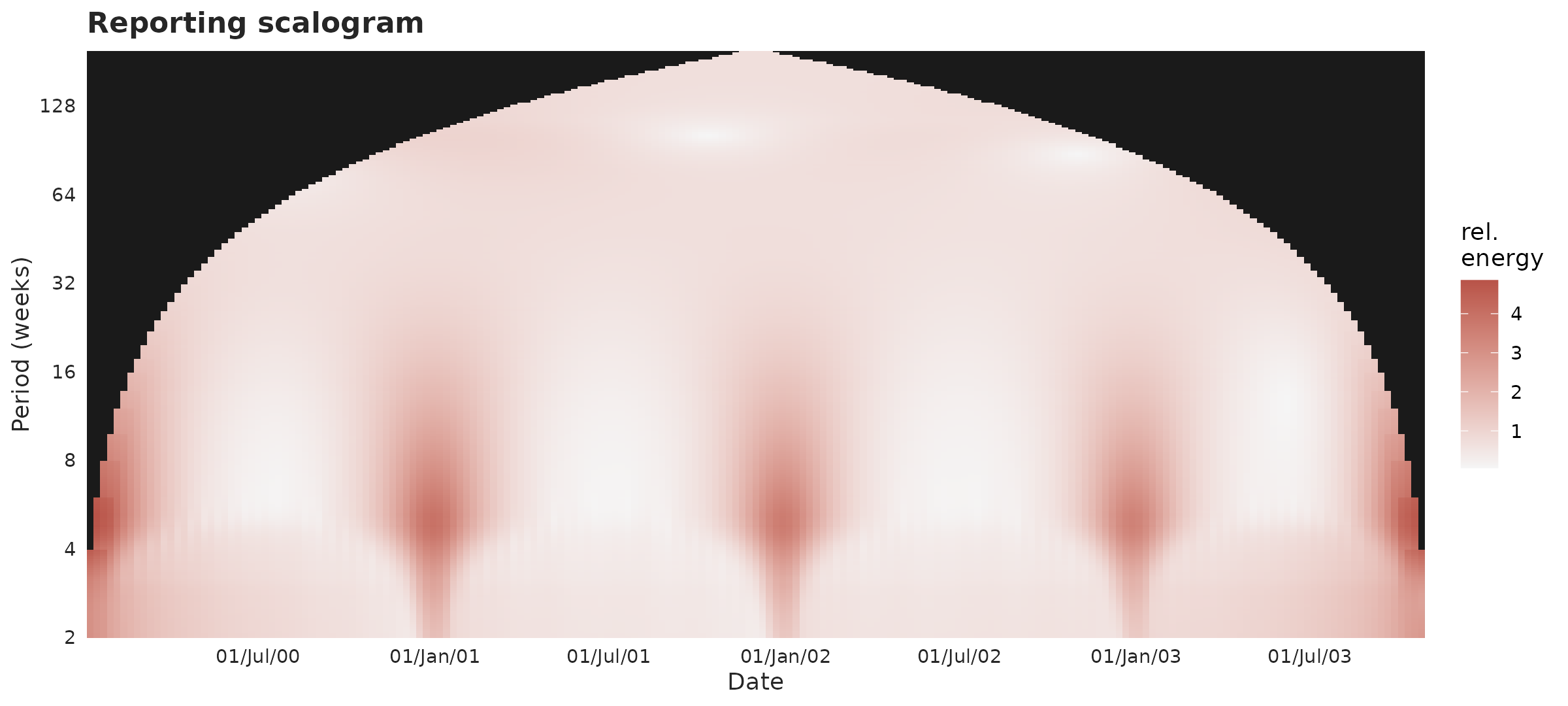

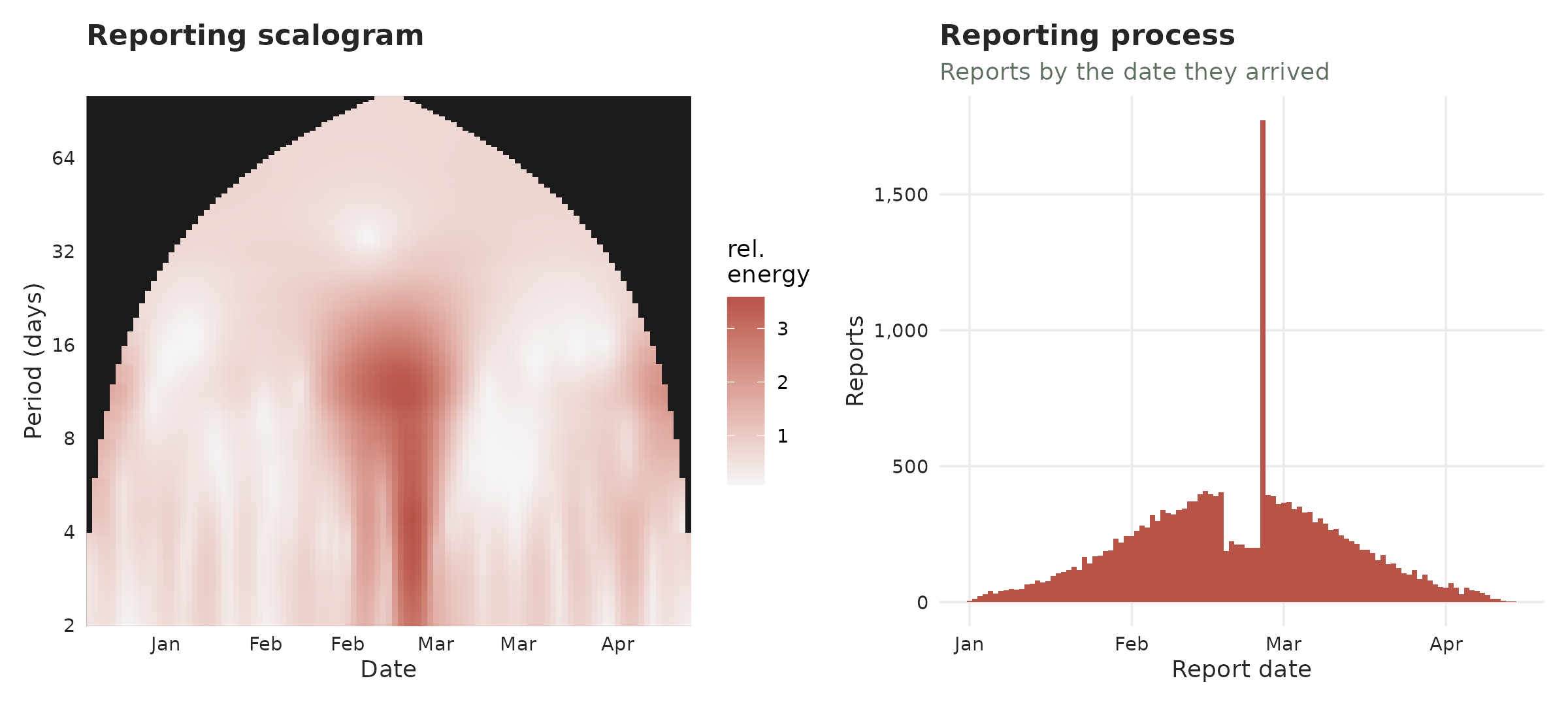

Its scalogram shows the decreases in the reporting cases as vertical streaks aligned with the minimal date of this decrease:

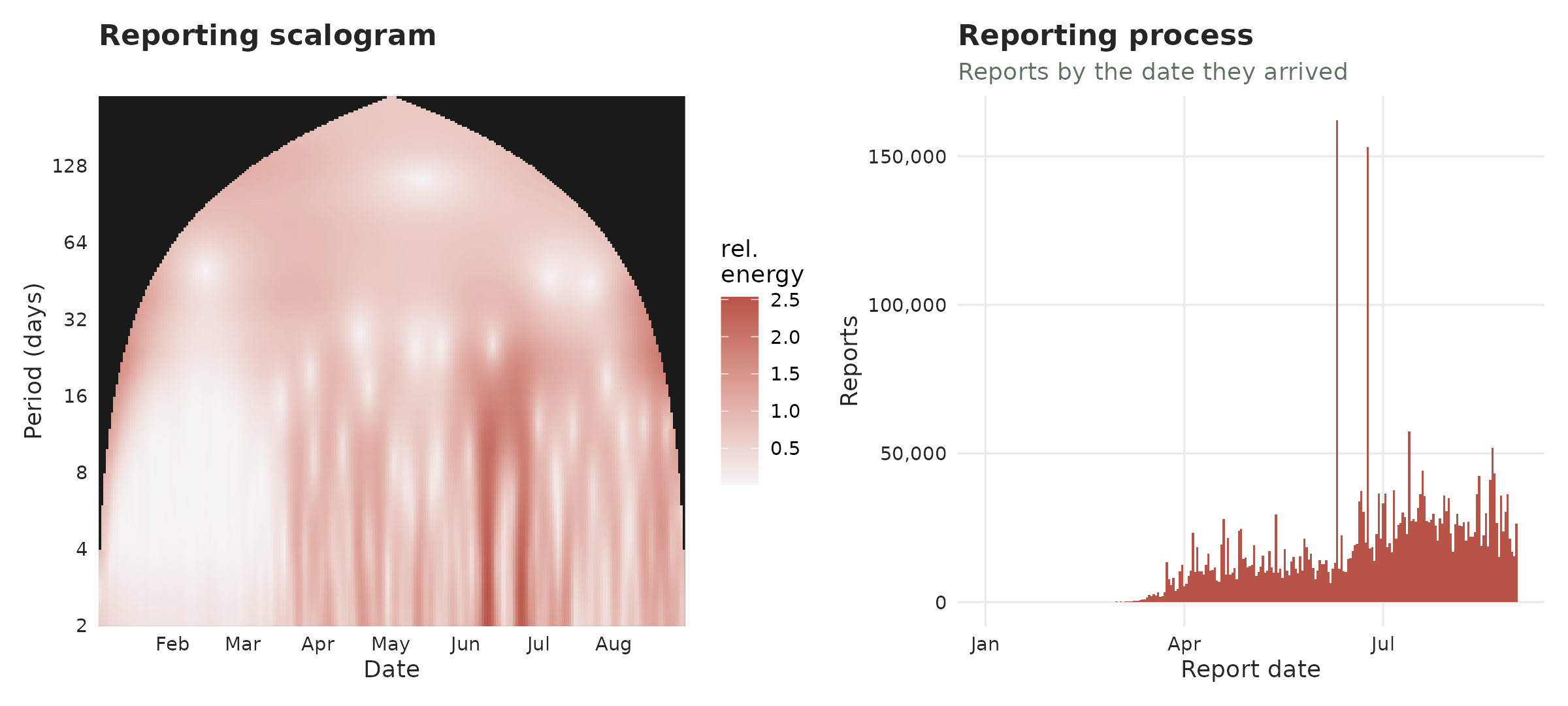

One can see the same vertical streaks in the previous reporting process we had been working on corresponding to the dip before the batch:

and again the same June dates being the most identified with additional dates having less of a clear pattern:

Transport vs creation

This is the main tool for detecting batches and surges. Before the plot, we will explain the whole idea. Consider a daily outbreak with reports incoming each day. Three things can change the number of reports:

  • a hold – a reporting office falls behind and some days’ reports are withheld;
  • a batch – the day the backlog (hold) is finally released, all at once;
  • a surge – an increase in the epidemic process: more people falling ill and being reported.

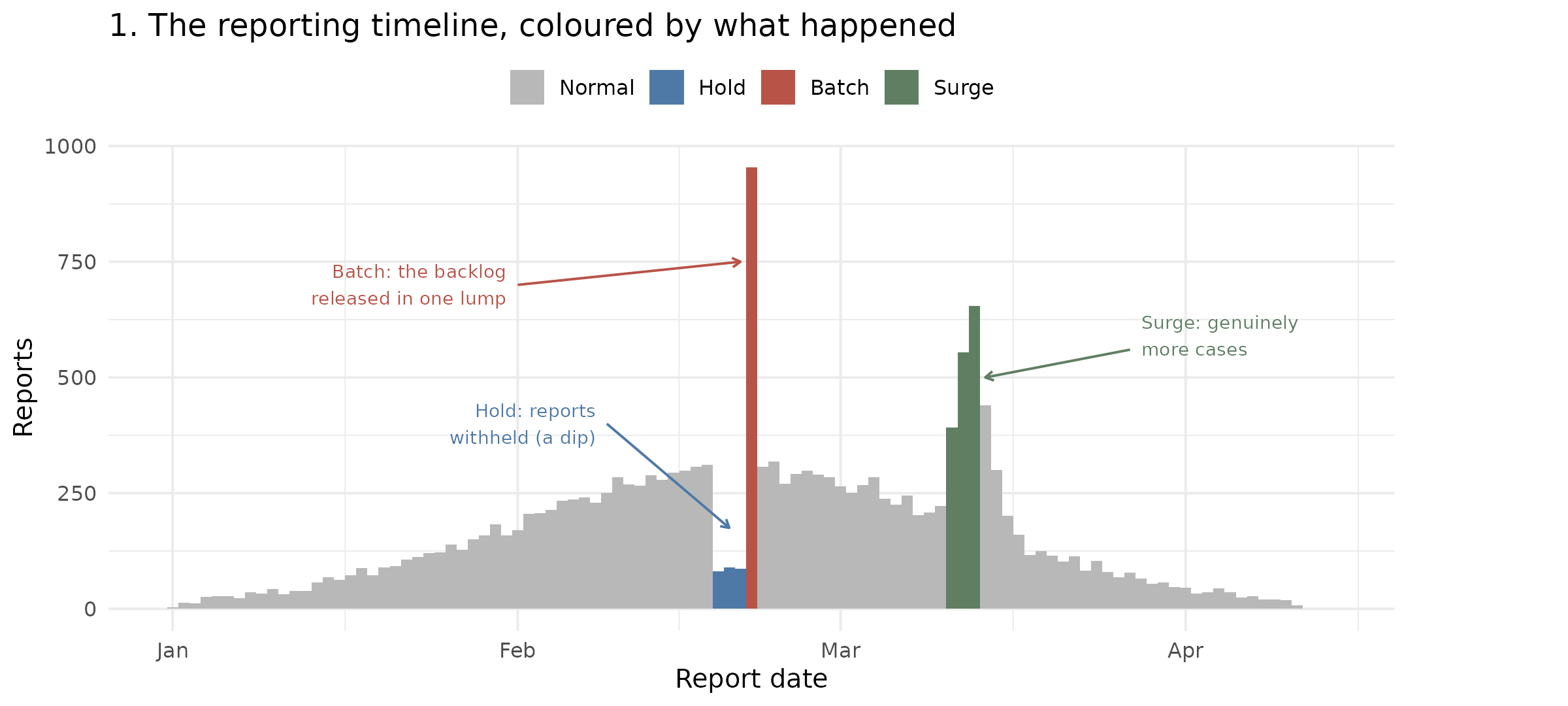

We simulate one of each in a clean epidemic and colour every day by its type (grey = ordinary day):

In the previous plot, every bar is one report date. The batch towers where the held reports land together; the hold is the small blue dip just before it; the surge is a genuine bump of new cases.

The transport discriminant turns each day into two numbers:

  • A creation score – did this stretch of days genuinely gain cases? A larger surge implies a larger creation score.
  • A transport score – were the days just before missing reports? A backlog release after a hold pushes it up.

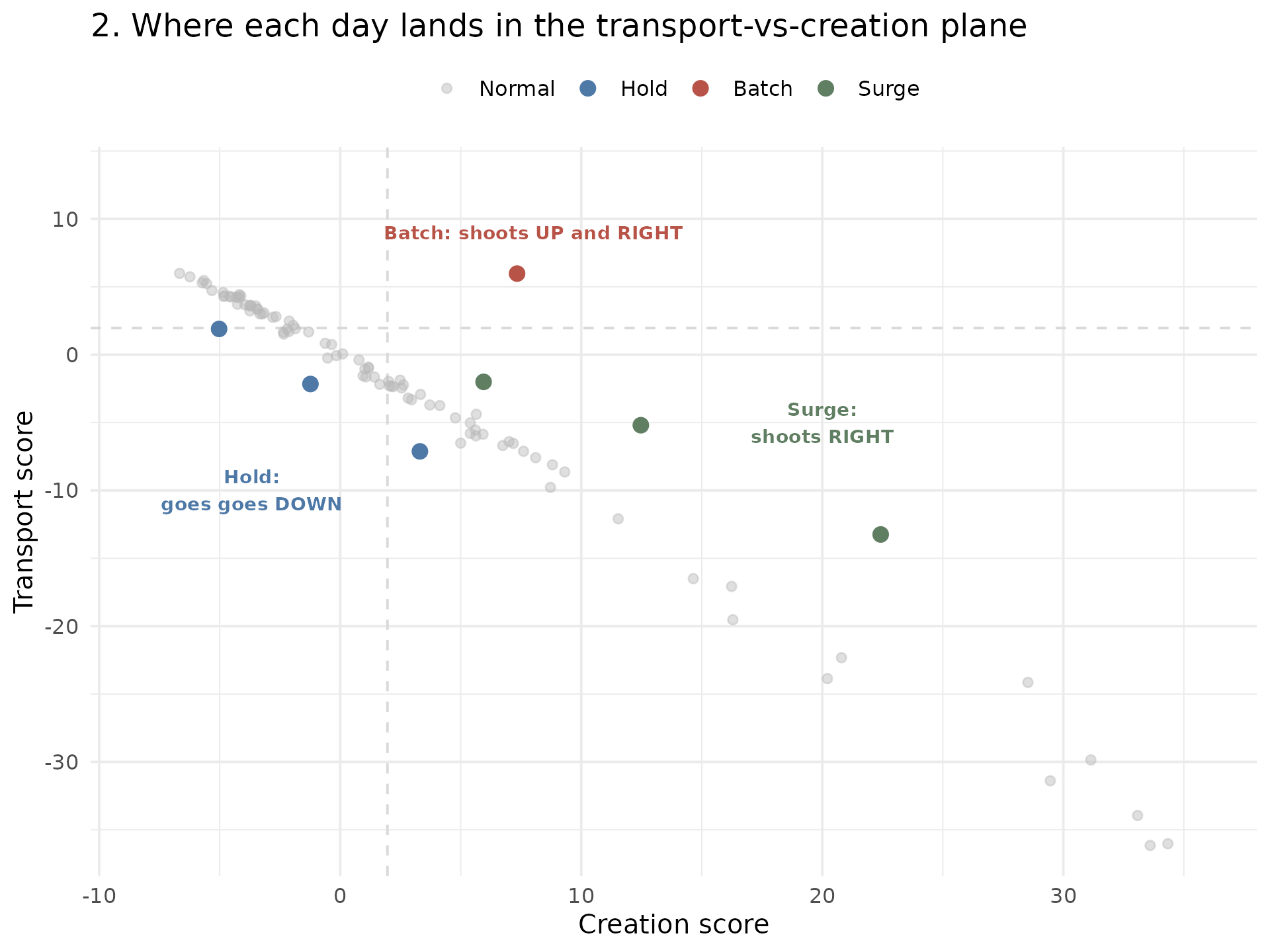

We plot every day by those two numbers and observe the directions of the three disturbances:

Identifying any bar with its dot we can conclude:

  • A batch (backlog release, red) shoots up and right – the days before were depleted (high transport) but not as many new cases were created (right);
  • A surge (green) shoots right – cases genuinely appeared (high creation), with apparent preceding hole;
  • A hold (blue) drifts left – reports have apparently gone missing (transport rising) while the window has lost cases (creation negative).

Ordinary days (grey) sit in the cloud through the middle. That is the whole idea behind transport_discriminant() and batch_test(): a batch is high transport with little creation.

The transport discriminant

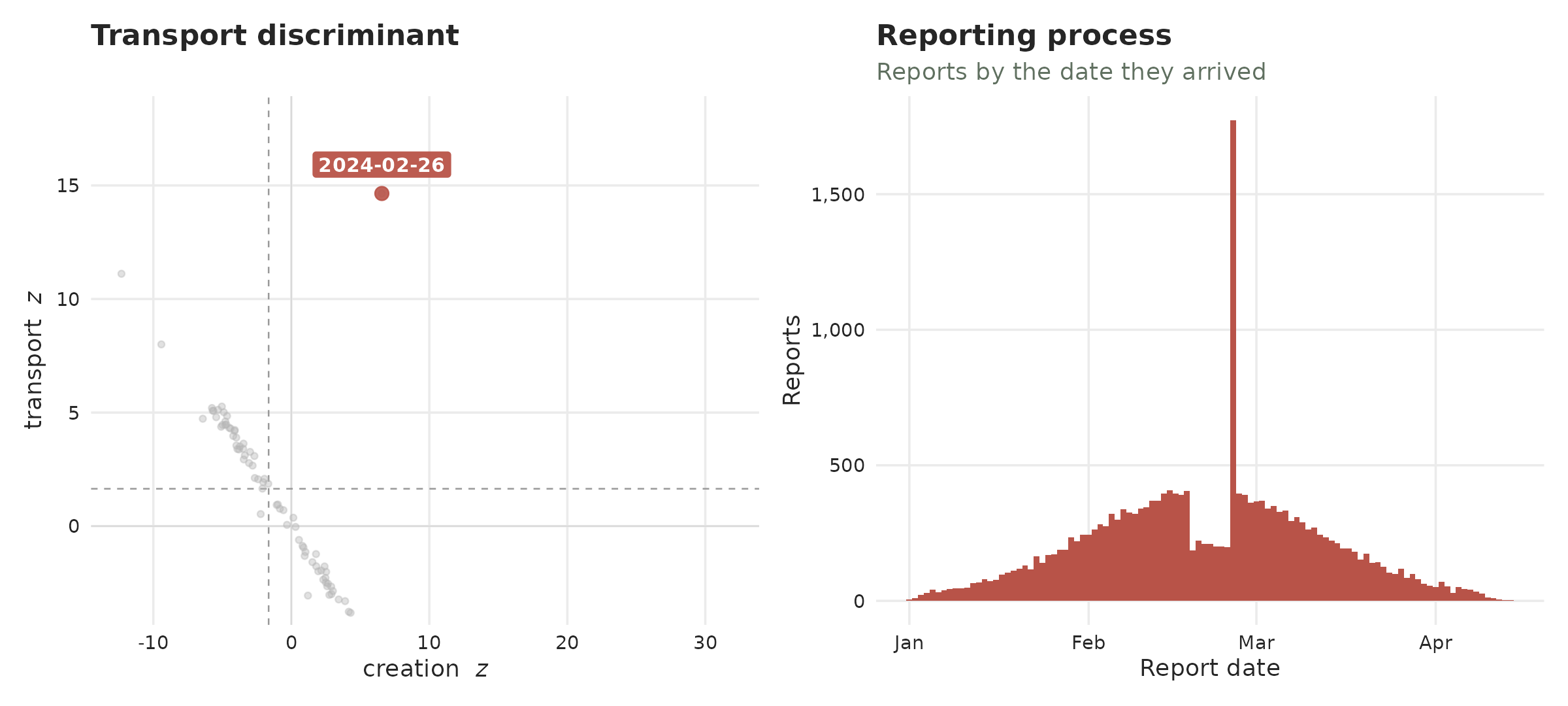

The previous plot can be done with the plot_transport_discriminant() function:

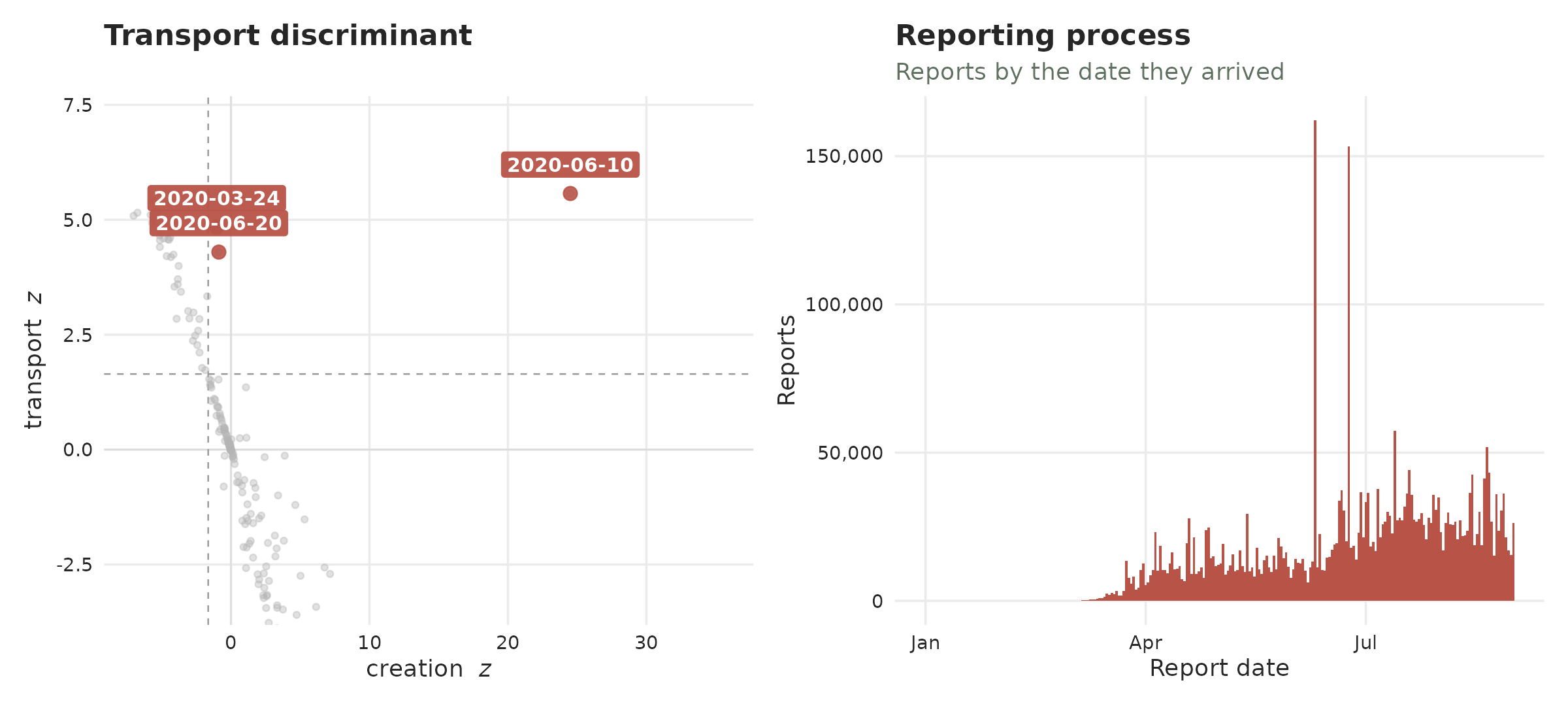

Which also works to identify the COVID-19 cases:

Recovering the data

The batch_test() function runs the transport test for the batch signature and returns, for every report date, the batch flag – a Benjamini-Hochberg-corrected verdict that controls the false-discovery rate across all dates (see ?batch_test for the full column reference). Keeping the batch rows gives the confirmed releases together with their deficit (how depleted the days just before were) and delta (how little the window total actually changed).

batch_test(ideal) %>%
  filter(batch)
#> # A tibble: 1 × 7
#>   report_date reported baseline deficit delta p_transport_bh batch
#>   <date>         <dbl>    <dbl>   <dbl> <dbl>          <dbl> <lgl>
#> 1 2024-02-26      1773     336.    972.  465.       7.03e-47 TRUE

On covid we pass period = 7 to divide out the weekly reporting cadence. The confirmed batches (the Benjamini-Hochberg-corrected batch flag) are the spring/summer-2020 releases – each reported far more than its neighbours and was preceded by a matching deficit. The clearest is 10 June 2020, nearly ten times its baseline:

batch_test(tn, period = 7) %>%
  filter(batch)
#> # A tibble: 3 × 7
#>   report_date reported baseline deficit   delta p_transport_bh batch
#>   <date>         <dbl>    <dbl>   <dbl>   <dbl>          <dbl> <lgl>
#> 1 2020-06-10    162150   16713.  25372. 120065.     0.00000296 TRUE
#> 2 2020-06-20     33784   17009.  21427.  -4652.     0.000102   TRUE
#> 3 2020-03-24     13532    4712.  11449.  -2629.     0.0000138  TRUE

The sensitivity of the batch flag can be adapted with alpha.

Delay changes

The reporting delay might change through time. Here we show two different plots for identifying delay problems.

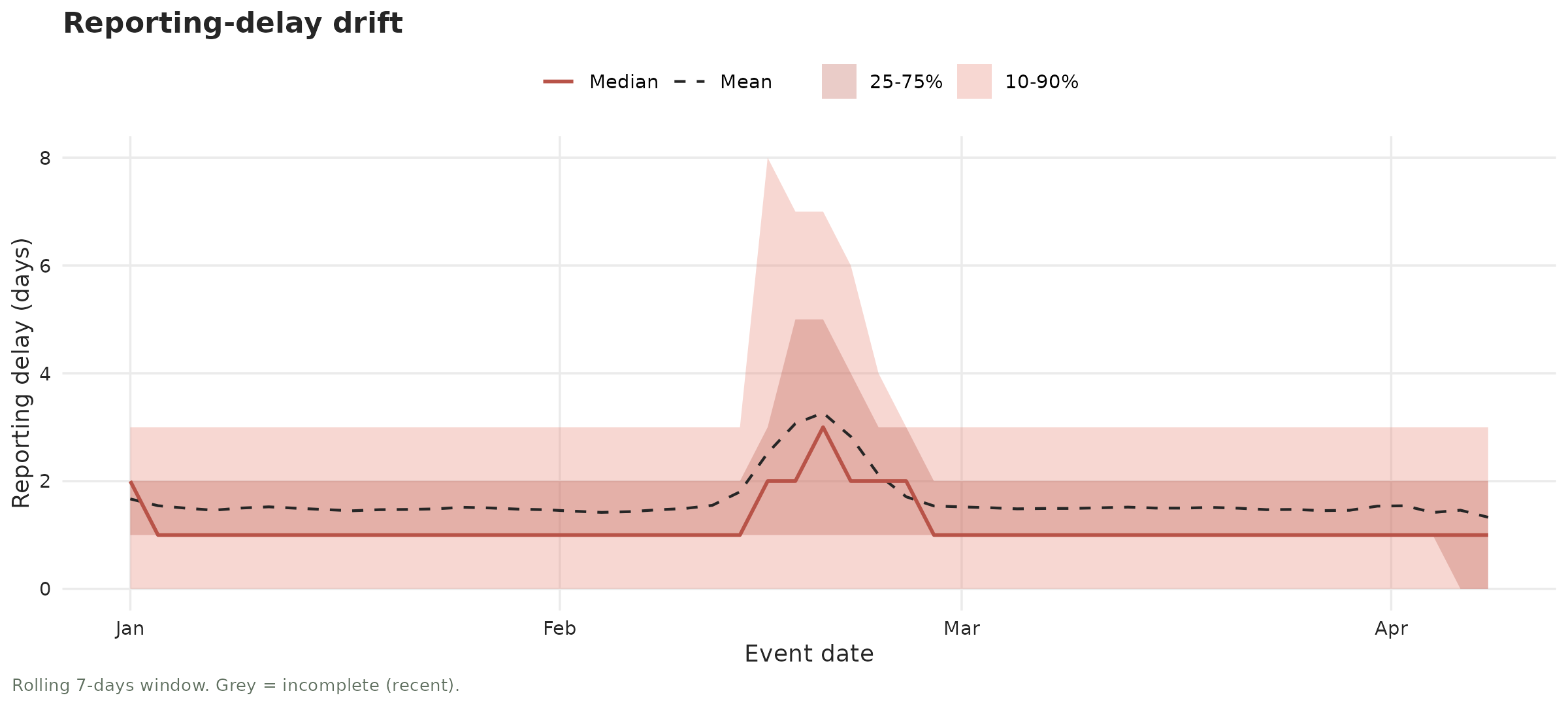

Reporting-delay drift

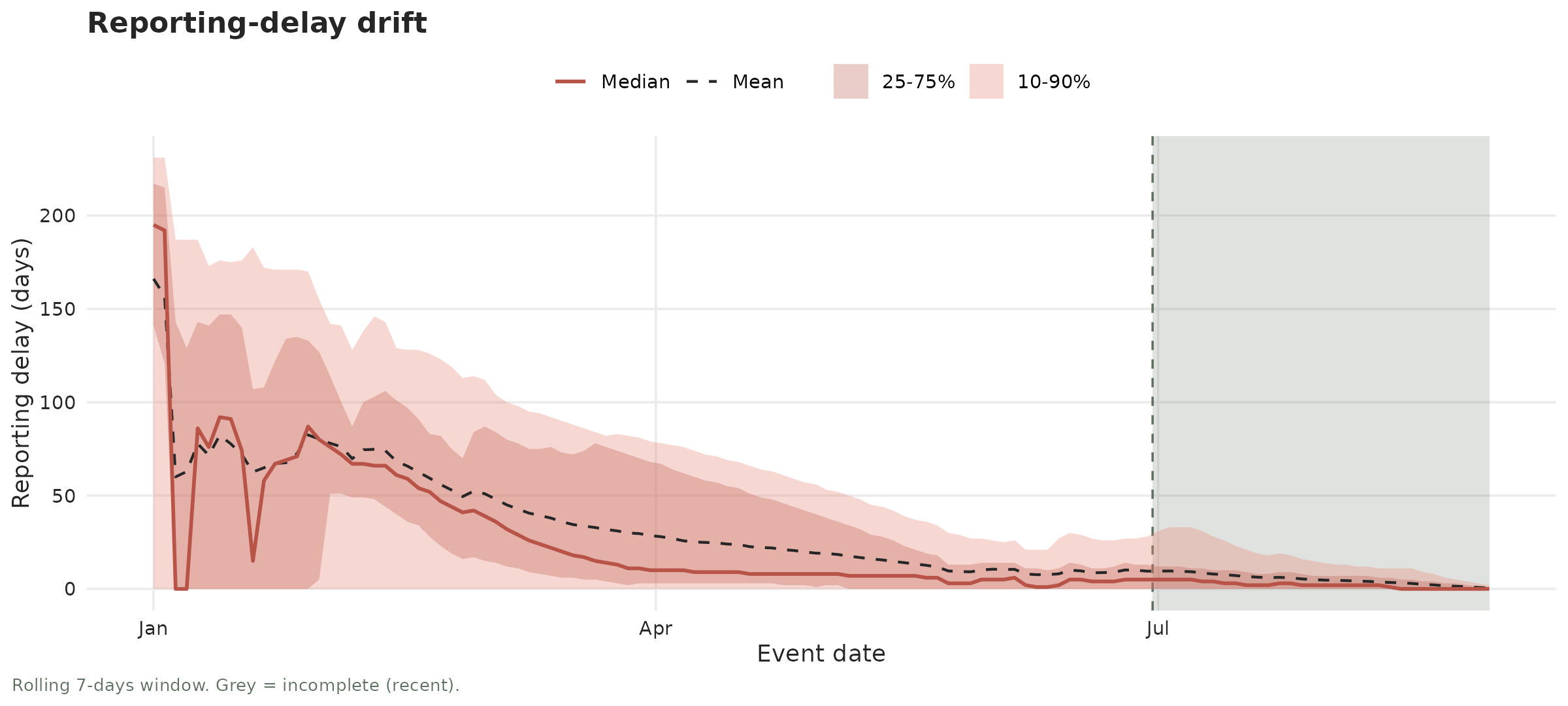

The typical time from case to report, tracked over the outbreak. Shows the overall trend of the delay. Normally it will be steady; a batch can be seen as a sudden bump upward on the release day.

On covid the delays show extreme variability in the beginning and a trend that decreases the delay in time:

The functions test_delay_drift() and test_delay_changepoint() test for a gradual or abrupt changes in the delay. We can see, for example, that it correctly identifies the drift in the COVID-19 dataset both for the median (trend) and the spread (see the quantiles getting tighter). On the ideal example this doesn’t happen so it does not detect a drift:

test_delay_drift(tn)
#> # A tibble: 2 × 9
#>   strata stat       n    tau sens_slope statistic  p_value method    drift
#>   <chr>  <chr>  <int>  <dbl>      <dbl>     <dbl>    <dbl> <chr>     <lgl>
#> 1 all    median   182 -0.601     -0.286     -3.91 9.17e- 5 hamed-rao TRUE
#> 2 all    spread   182 -0.871     -0.912     -6.13 8.55e-10 hamed-rao TRUE
test_delay_drift(ideal)
#> # A tibble: 2 × 9
#>   strata stat       n     tau sens_slope statistic p_value method    drift
#>   <chr>  <chr>  <int>   <dbl>      <dbl>     <dbl>   <dbl> <chr>     <lgl>
#> 1 all    median   100  0.0129          0     0.151   0.880 hamed-rao FALSE
#> 2 all    spread   100 -0.0204          0    -0.305   0.760 hamed-rao FALSE

The change-point function also detects that by April the COVID-19 delay distribution has completely changed from before. In the case of the ideal example the change is not long enough to be detected:

test_delay_changepoint(tn)
#> # A tibble: 2 × 10
#>   strata stat       n changepoint statistic  p_value before after shift
#>   <chr>  <chr>  <int> <date>          <dbl>    <dbl>  <dbl> <dbl> <dbl>
#> 1 all    median   182 2020-04-06       5881 2.71e-15   40.7  6.35 -34.3
#> 2 all    spread   182 2020-04-01       8076 1.84e-28  127.  44.0  -82.7
#> # ℹ 1 more variable: changepoint_detected <lgl>
test_delay_changepoint(ideal)
#> # A tibble: 2 × 10
#>   strata stat       n changepoint statistic p_value before after  shift
#>   <chr>  <chr>  <int> <date>          <dbl>   <dbl>  <dbl> <dbl>  <dbl>
#> 1 all    median   100 2024-02-17        387   0.822   1.06  1.46  0.399
#> 2 all    spread   100 2024-02-21        335   1       3.44  3.02 -0.421
#> # ℹ 1 more variable: changepoint_detected <lgl>

Delay profiles

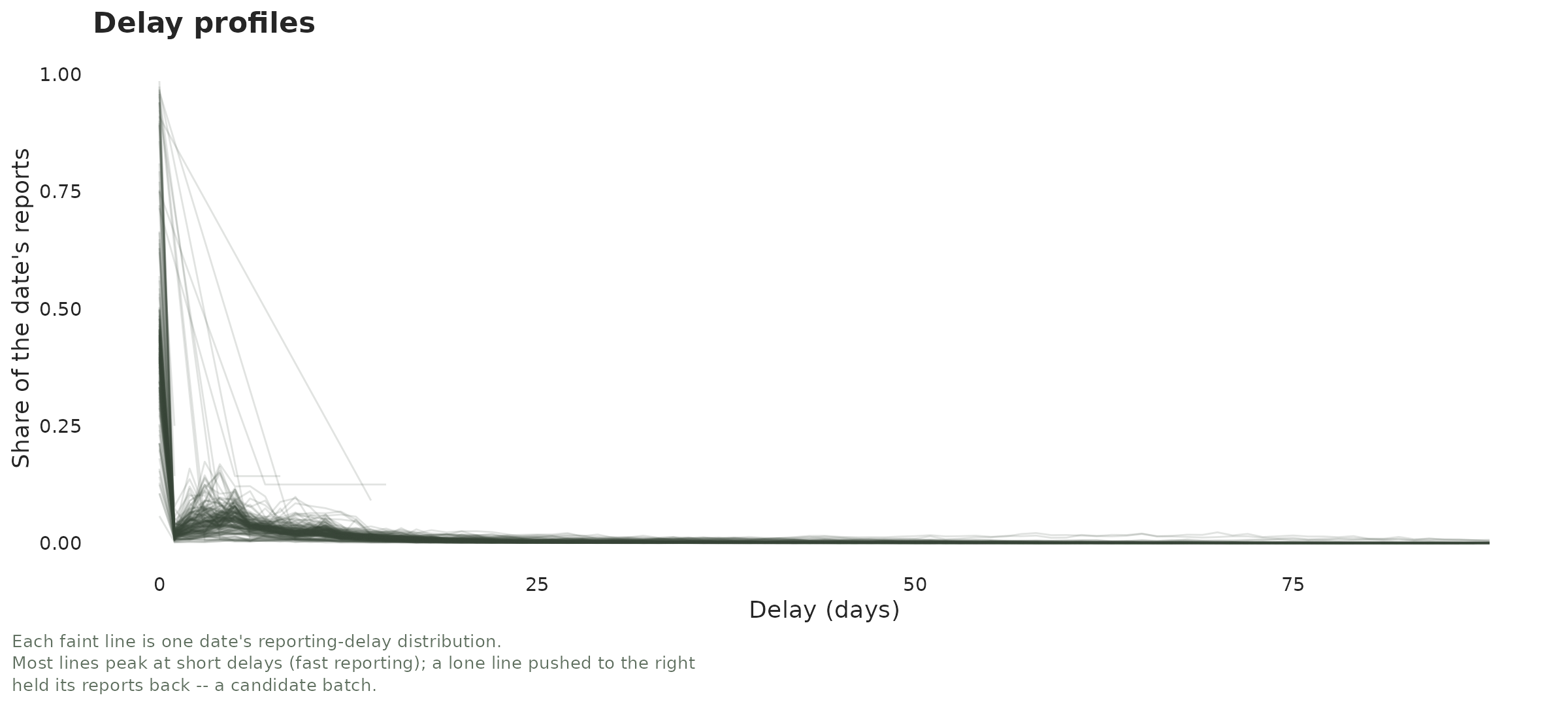

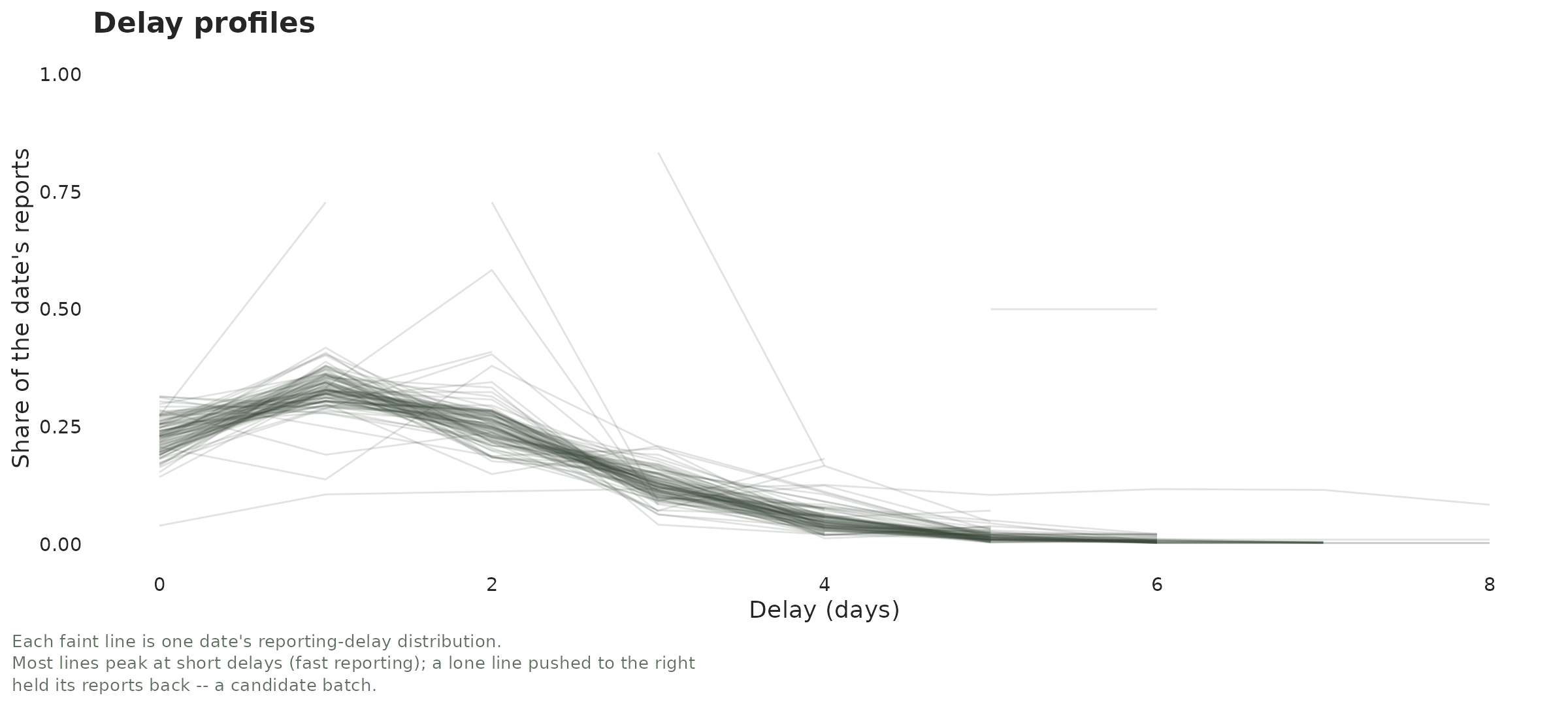

Each faint line is one day’s distirbution of reporting delays. Most days report quickly, so their lines hug the left and concentrate around the same distribution:

On COVID-19 a whole spray of lines reaches far to the right days that reported cases months later.

In summary

Here is the whole toolkit on one page. Every row is a different way of seeing the same thing – reports that were held back and then released together.

Plot What to look for
Reporting process Shows how reports were registered.
Reporting triangle Diagonals show cases with the same report date.
The reporting V Horizontal slices show cases with the same report date.
Wavelet scalogram Bright short-period ridges in the reporting series show holds on the reporting.
Transport discriminant A red dot up-and-left, in the “potential batch region” might indicate a batch.
batch_test() Shows the flagged reports in the discriminant as a data.frame
Delay profiles Show the delay distribution for each event date.
Reporting-delay drift Shows how the delay and its variance change through time.

Another practical notes from other data we have analyzed:

  • In general, surges (real new cases) seem harder to identify of that batches (moved reports).
  • Batches are very difficult to identify in low-incidence scenarios.
  • Batches very close to the now are difficult to identify without additional modeling hypotheses.
